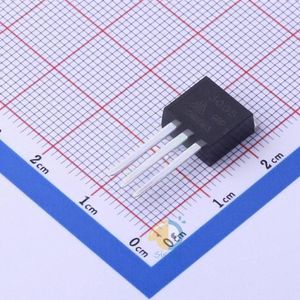

3DD13005GRD دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
3DD13005GRD
|
|
حجم فایل
|
66.954
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
4
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
Wuxi China Resources Huajing Microelectronics 3DD13005GRD
-
Transistor Type:
NPN (Triple Diffused Planar Silicon Transistor)
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
4A
-
Power Dissipation (Pd):
50W
-
Transition Frequency (fT):
5MHz
-
DC Current Gain (hFE@Ic,Vce):
15@1A,5V
-
Collector Cut-Off Current (Icbo):
100uA
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
250mV@2A,500mA
-
Package:
TO-262-3
-
Manufacturer:
Wuxi China Resources Huajing Microelectronics
