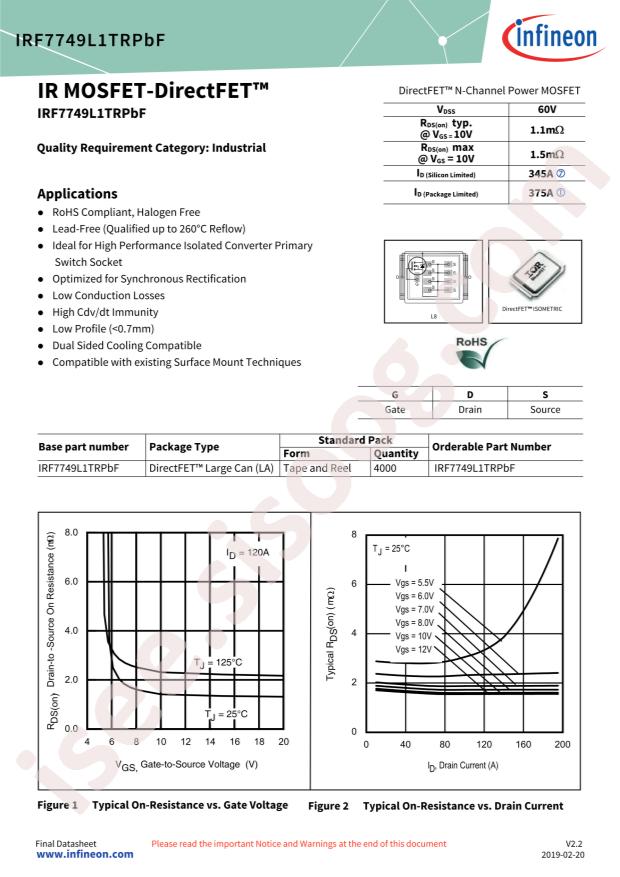

IRF7749L1TRPBF دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
IRF7749L1TRPBF
|
|
حجم فایل
|
85.138
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
18
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Infineon Technologies IRF7749L1TRPBF
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
3.3W;125W
-
Total Gate Charge (Qg@Vgs):
300nC@10V
-
Input Capacitance (Ciss@Vds):
12320pF@25V
-
Continuous Drain Current (Id):
33A;200A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
1.5mΩ@120A,10V
-
Package:
DirectFET-L8
-
Manufacturer:
Infineon Technologies
