2N7002DW-G 数据手册
其他文档
未找到其他文档！
技术规格
- RoHS: true
- Type: 2 N-Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: onsemi 2N7002DW-G
- Operating Temperature: -55°C~+150°C@(Tj)
- Power Dissipation (Pd): 200mW
- Input Capacitance (Ciss@Vds): 50pF@25V
- Continuous Drain Current (Id): 115mA
- Gate Threshold Voltage (Vgs(th)@Id): 2V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 2Ω@500mA,10V

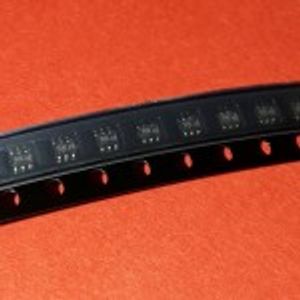

- Package: SOT-363-6(SC-70-6)
- Manufacturer: onsemi
