IRFS9N60ATRLPBF دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
IRFS9N60ATRLPBF
|
|
حجم فایل
|
100.417
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:

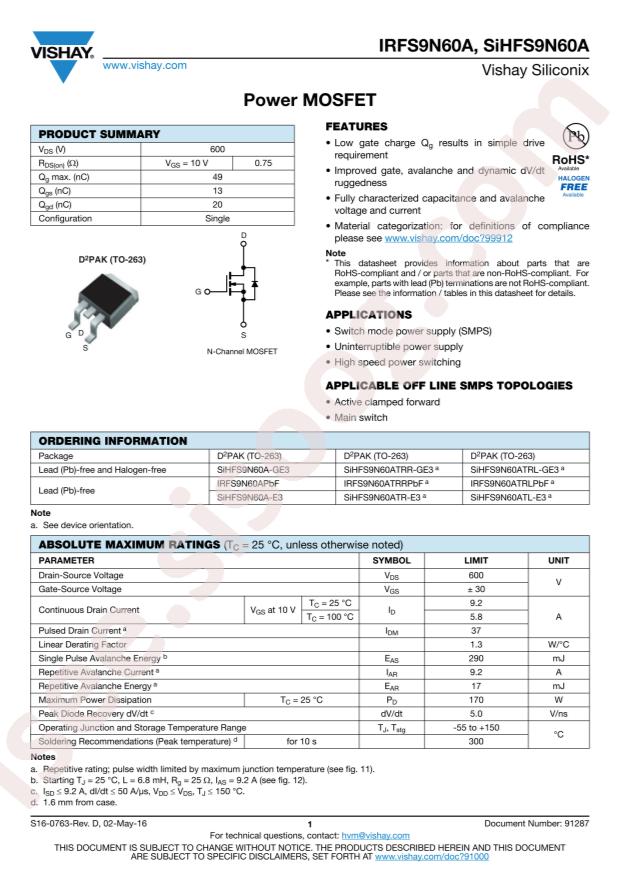

Vishay Intertech IRFS9N60ATRLPBF
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
170W
-
Total Gate Charge (Qg@Vgs):
49nC@10V
-
Input Capacitance (Ciss@Vds):
1400pF@25V
-
Continuous Drain Current (Id):
9.2A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
750mΩ@5.5A,10V
-
Package:
TO-263-3
-
Manufacturer:
Vishay Intertech
