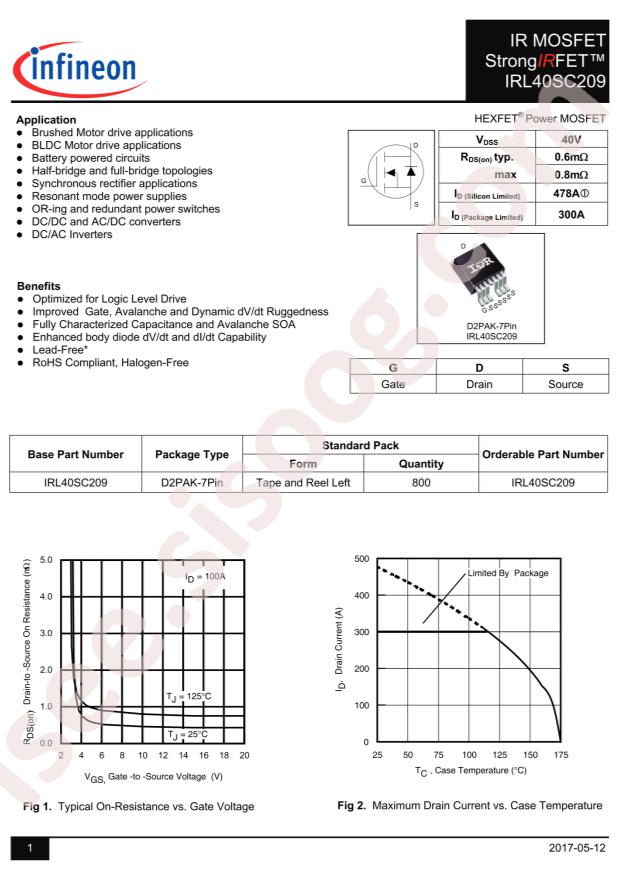

IRL40SC209 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
IRL40SC209
|
|
حجم فایل
|
80.928
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Infineon Technologies IRL40SC209
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
375W
-
Total Gate Charge (Qg@Vgs):
267nC@4.5V
-
Drain Source Voltage (Vdss):
40V
-
Input Capacitance (Ciss@Vds):
15270pF@25V
-
Continuous Drain Current (Id):
478A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.4V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
0.8mΩ@100A,10V
-
Package:
D2PAK-7P
-
Manufacturer:
Infineon Technologies
