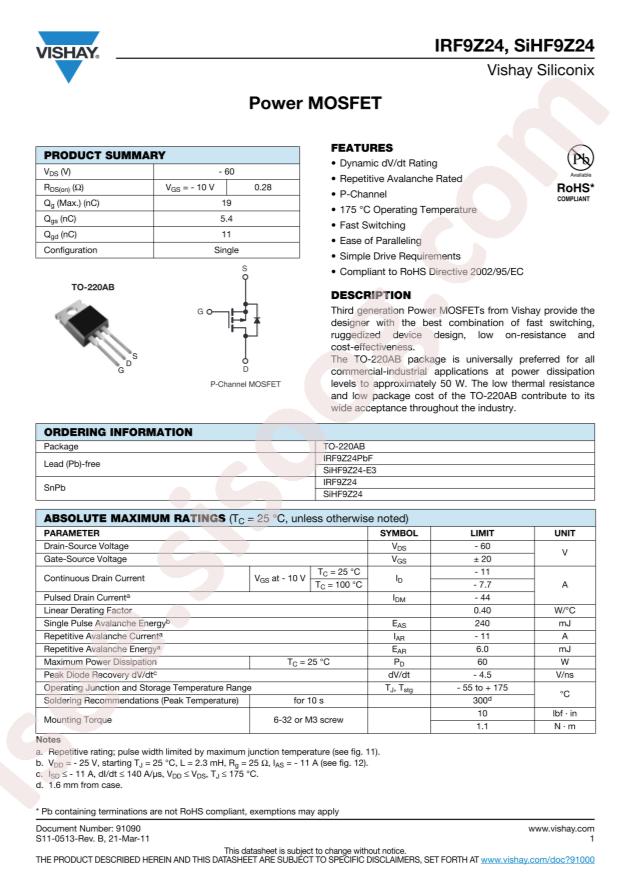

IRF9Z24PBF دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
IRF9Z24PBF
|
|
حجم فایل
|
95.797
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Vishay Intertech IRF9Z24PBF
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
60W
-
Total Gate Charge (Qg@Vgs):
19nC@10V
-
Input Capacitance (Ciss@Vds):
570pF@25V
-
Continuous Drain Current (Id):
11A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
280mΩ@6.6A,10V
-

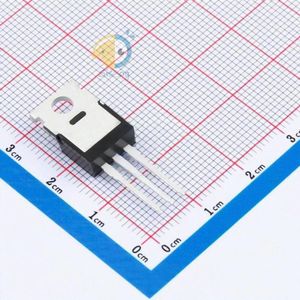

Package:
TO-220
-
Manufacturer:
Vishay Intertech
