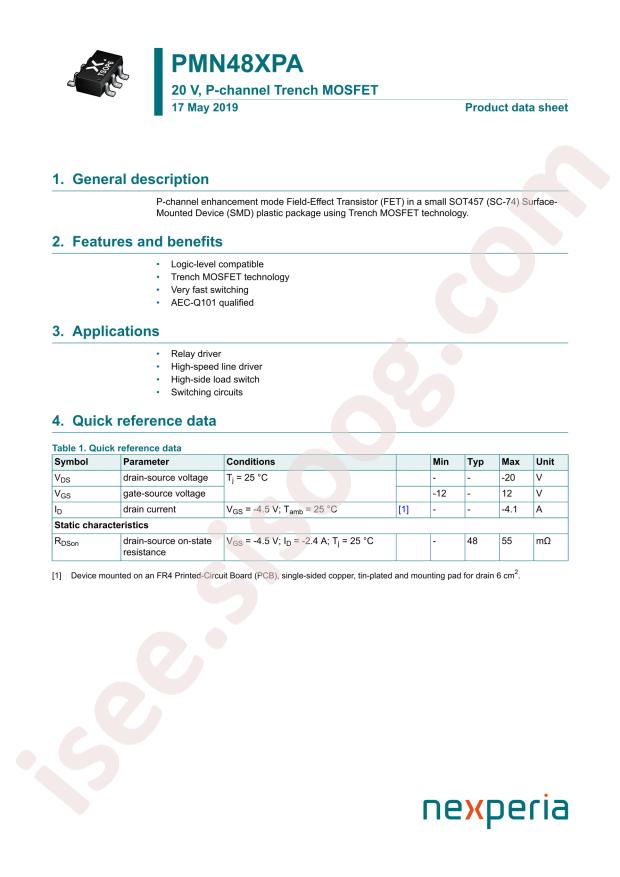

PMN48XPAX دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
PMN48XPAX
|
|
حجم فایل
|
52.601
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Nexperia PMN48XPAX
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
530mW;6.25W
-
Total Gate Charge (Qg@Vgs):
13nC@4.5V
-
Input Capacitance (Ciss@Vds):
1000pF@10V
-
Continuous Drain Current (Id):
4.1A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.25V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
55mΩ@2.4A,4.5V
-
Package:
SOT-23-6
-
Manufacturer:
Nexperia
