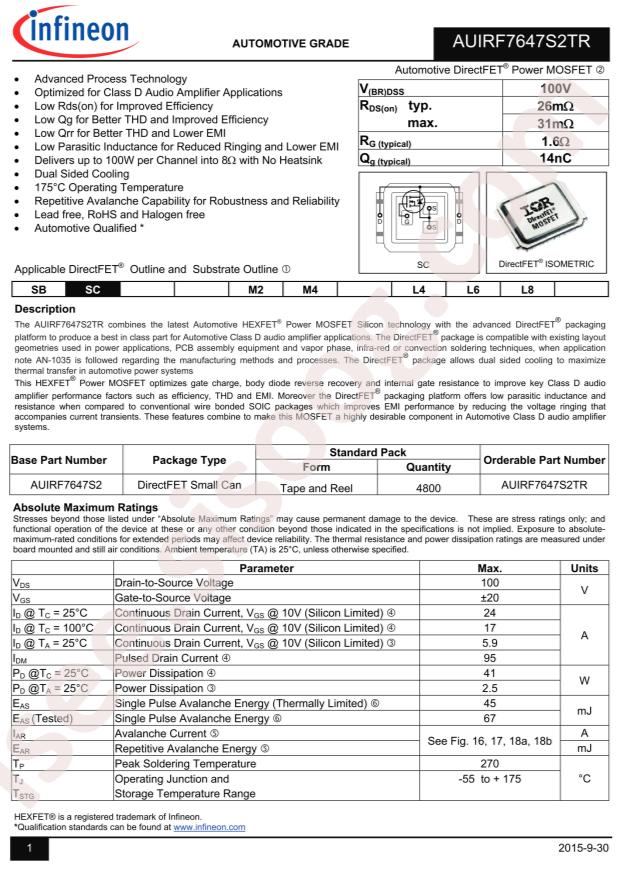

AUIRF7647S2TR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
AUIRF7647S2TR
|
|
حجم فایل
|
131.097
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
11
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Infineon Technologies AUIRF7647S2TR
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
2.5W;41W
-
Total Gate Charge (Qg@Vgs):
21nC@10V
-
Drain Source Voltage (Vdss):
100V
-
Input Capacitance (Ciss@Vds):
910pF@25V
-
Continuous Drain Current (Id):
5.9A;24A
-
Gate Threshold Voltage (Vgs(th)@Id):
5V@50uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
31mΩ@14A,10V
-
Package:
DirectFET
-
Manufacturer:
Infineon Technologies
