2N7002P,235 Datasheet
Datasheet specifications
| Datasheet's name | 2N7002P,235 |
|---|---|
| File size | 51.873 KB |
| File type | |
| Number of pages | 16 |
Download Datasheet 2N7002P,235 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- RoHS: true
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: Nexperia 2N7002P,235
- Operating Temperature: -55°C~+150°C@(Tj)
- Power Dissipation (Pd): 350mW
- Total Gate Charge (Qg@Vgs): 0.8nC@5V
- Input Capacitance (Ciss@Vds): 50pF@10V
- Continuous Drain Current (Id): 360mA
- Gate Threshold Voltage (Vgs(th)@Id): 2.4V@250uA
- Reverse Transfer Capacitance (Crss@Vds): -
- Drain Source On Resistance (RDS(on)@Vgs,Id): 1.6Ω@500mA,10V

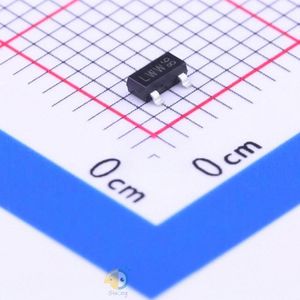

- Package: SOT-23(TO-236)
- Manufacturer: Nexperia
