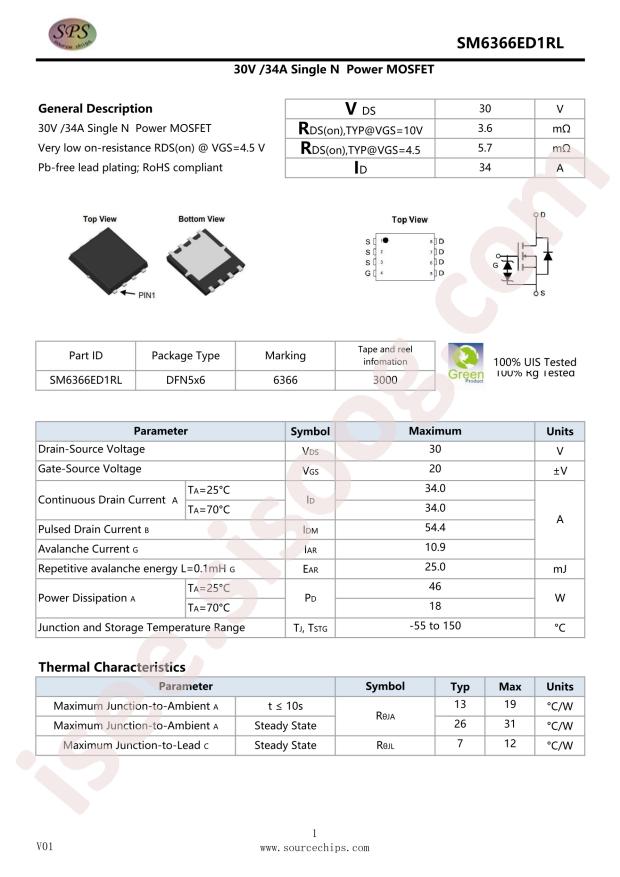

SM6366ED1RL دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SM6366ED1RL
|
|
حجم فایل
|
72.393
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
4
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
SPS SM6366ED1RL
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
46W
-
Total Gate Charge (Qg@Vgs):
14nC@4.5V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
3.02nF@15V
-
Continuous Drain Current (Id):
34A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.8V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
280pF@15V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
3.6mΩ@10V,20A
-
Package:
DFN-8-EP(6.1x5.2)
-
Manufacturer:
SPS
