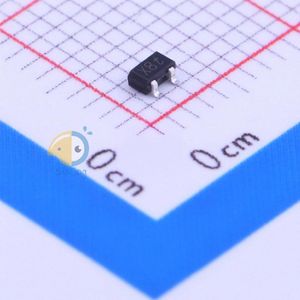

2N7002PW,115 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
2N7002PW,115
|
|
حجم فایل
|
51.873
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
16
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Nexperia 2N7002PW,115
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
260mW
-
Total Gate Charge (Qg@Vgs):
0.8nC@5V
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
50pF@10V
-
Continuous Drain Current (Id):
310mA
-
Gate Threshold Voltage (Vgs(th)@Id):
2.4V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
1.6Ω@10V,500mA
-
Package:
SOT-323(SC-70)
-
Manufacturer:
Nexperia
