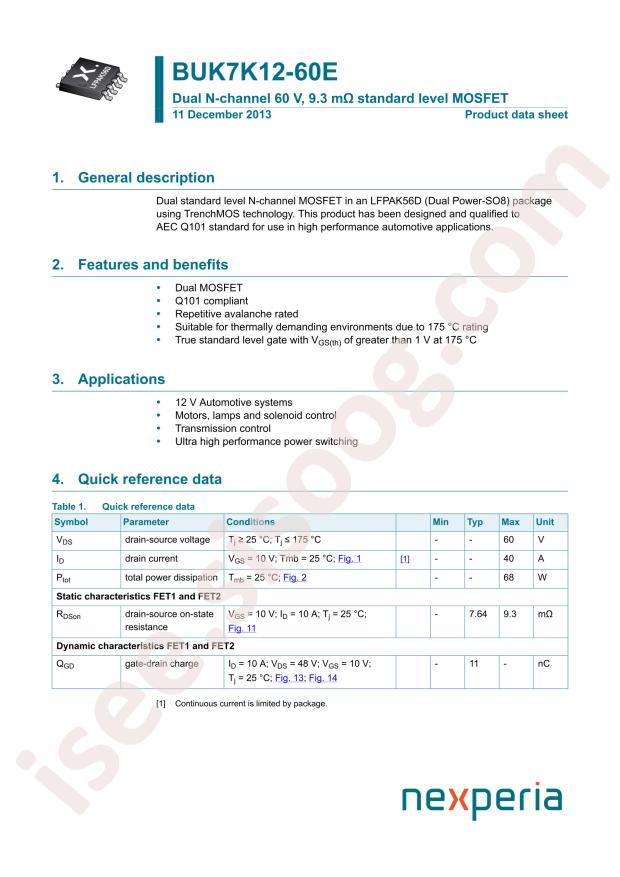

BUK7K12-60EX Datasheet
Datasheet specifications
| Datasheet's name | BUK7K12-60EX |
|---|---|
| File size | 66.809 KB |
| File type | |
| Number of pages | 13 |
Download Datasheet BUK7K12-60EX |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- RoHS: true
- Type: 2 N-Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: Nexperia BUK7K12-60EX
- Operating Temperature: -55°C~+175°C@(Tj)
- Power Dissipation (Pd): 68W
- Total Gate Charge (Qg@Vgs): 10.4nC@10V
- Input Capacitance (Ciss@Vds): 617pF@25V
- Continuous Drain Current (Id): 40A
- Gate Threshold Voltage (Vgs(th)@Id): 4V@1mA
- Reverse Transfer Capacitance (Crss@Vds): -
- Drain Source On Resistance (RDS(on)@Vgs,Id): 9.3mΩ@10A,10V
- Package: SOT-1205
- Manufacturer: Nexperia
