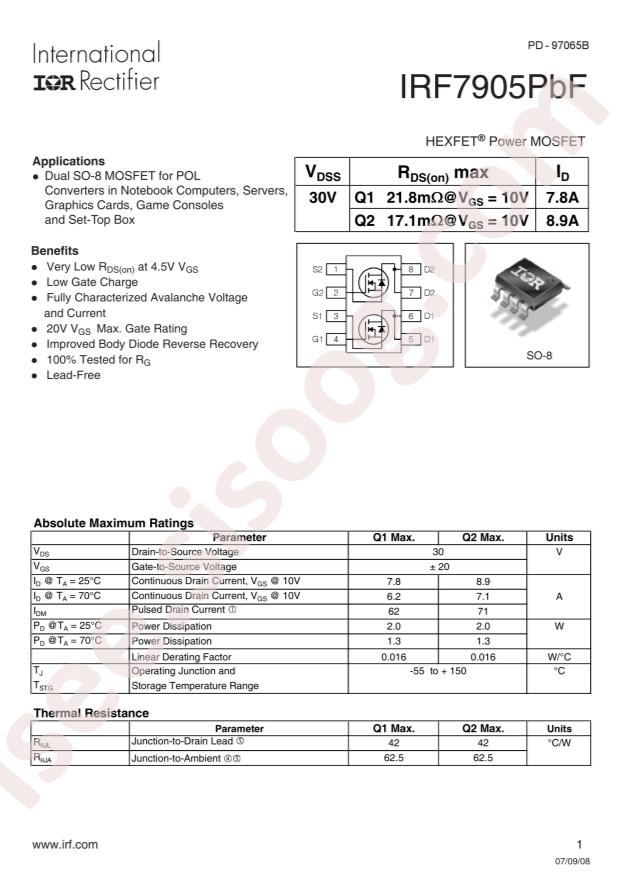

IRF7905TRPBF دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
IRF7905TRPBF
|
|
حجم فایل
|
75.172
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Type:
2 N-Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Infineon Technologies IRF7905TRPBF
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
2W
-
Total Gate Charge (Qg@Vgs):
6.9nC@4.5V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
600pF@15V
-
Continuous Drain Current (Id):
7.8A;8.9A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.25V@25uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
21.8mΩ@7.8A,10V
-

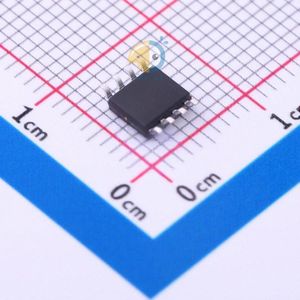

Package:
SOP-8
-
Manufacturer:
Infineon Technologies
