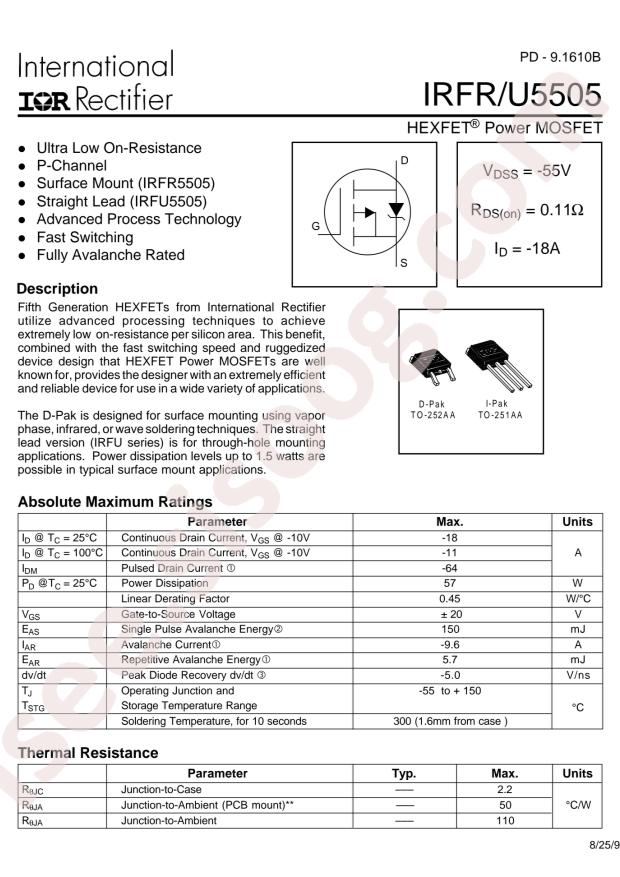

دیتاشیت IRFR5505TRPBF
مشخصات دیتاشیت
| نام دیتاشیت |
IRFR5505TRPBF
|
| حجم فایل |
106.128
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
11
|
مشخصات
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Infineon Technologies IRFR5505TRPBF
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
57W
-
Total Gate Charge (Qg@Vgs):
32nC@10V
-
Drain Source Voltage (Vdss):
55V
-
Input Capacitance (Ciss@Vds):
650pF@25V
-
Continuous Drain Current (Id):
18A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
110mΩ@10V,9.6A
-
Package:
TO-252
-
Manufacturer:
Infineon Technologies
