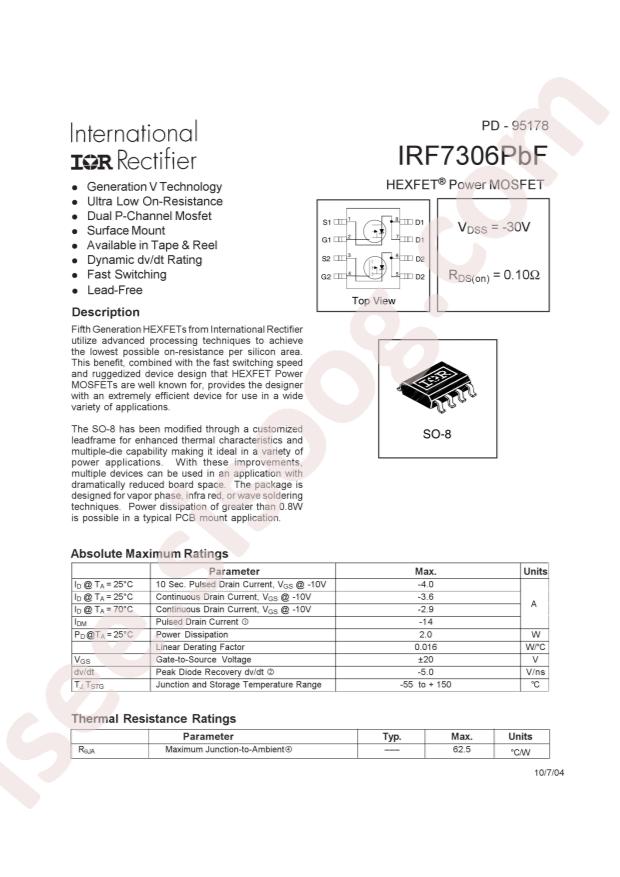

دیتاشیت IRF7306TRPBF
مشخصات دیتاشیت
| نام دیتاشیت |
IRF7306TRPBF
|
| حجم فایل |
69.989
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
9
|
مشخصات
-
RoHS:
true
-
Type:
2 P-Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Infineon Technologies IRF7306TRPBF
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
2W
-
Total Gate Charge (Qg@Vgs):
25nC@10V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
440pF@25V
-
Continuous Drain Current (Id):
3.6A
-
Gate Threshold Voltage (Vgs(th)@Id):
1V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
100mΩ@1.8A,10V
-
Package:
SOP-8
-
Manufacturer:
Infineon Technologies
