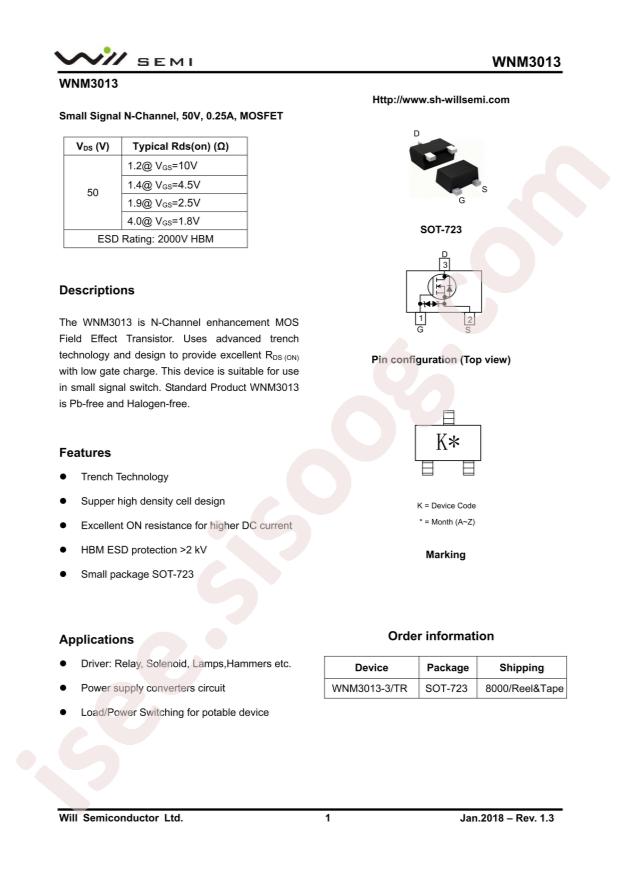

WNM3013-3/TR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
WNM3013-3/TR
|
|
حجم فایل
|
53.654
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
WILLSEMI(Will Semicon) WNM3013-3/TR
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
380mW
-
Total Gate Charge (Qg@Vgs):
1.6nC@10V
-
Drain Source Voltage (Vdss):
50V
-
Input Capacitance (Ciss@Vds):
36pF@5V
-
Continuous Drain Current (Id):
250mA
-
Gate Threshold Voltage (Vgs(th)@Id):
1V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
12pF@5V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
1.2mΩ@10V,450mA
-
Package:
SOT-723
-
Manufacturer:
WILLSEMI(Will Semicon)
