- 74HCT4075D-Q100J

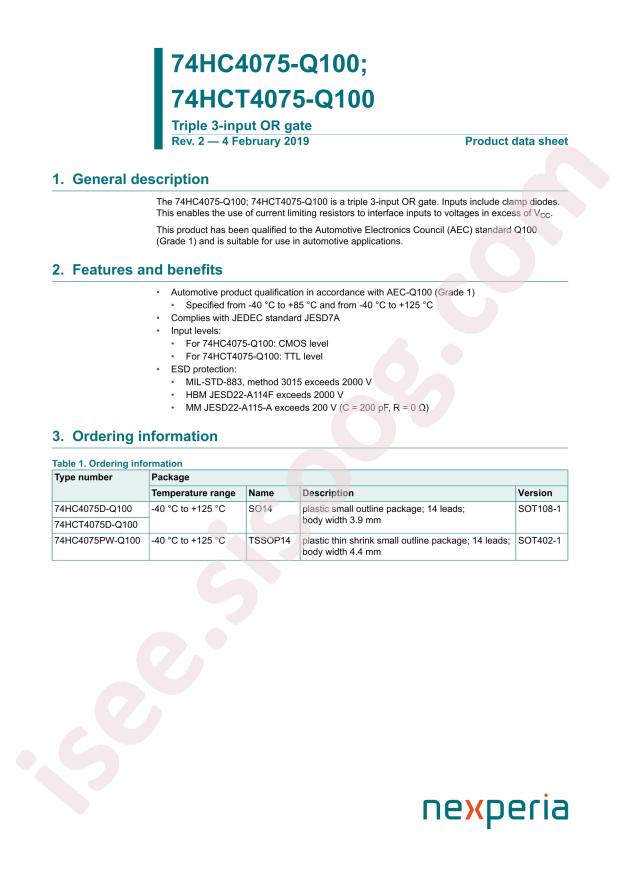

74HCT4075D-Q100J Datasheet
Datasheet specifications
| Datasheet's name | 74HCT4075D-Q100J |
|---|---|
| File size | 59.163 KB |
| File type | |
| Number of pages | 12 |
Download Datasheet 74HCT4075D-Q100J |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- RoHS: true
- Series: 74HC
- Category: Logic ICs/Gates
- Datasheet: Nexperia 74HC4075D-Q100J
- Sink Current: 5.2mA
- Source Current: 5.2mA
- Supply Voltage: 2V~6V
- Logic Gate Type: ORGate
- Number of Channels: 3
- Low Level Range (VIL): 0.5V~1.8V
- Operating Temperature: -40°C~+125°C
- High Level Range (VIH): 1.5V~4.2V
- Propagation Delay Time: 17ns@6V,50pF
- Quiescent Current (Max): 2uA
- Package: SO-14
- Manufacturer: Nexperia
