P6SMB12CA 数据手册
技术规格
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/TVS

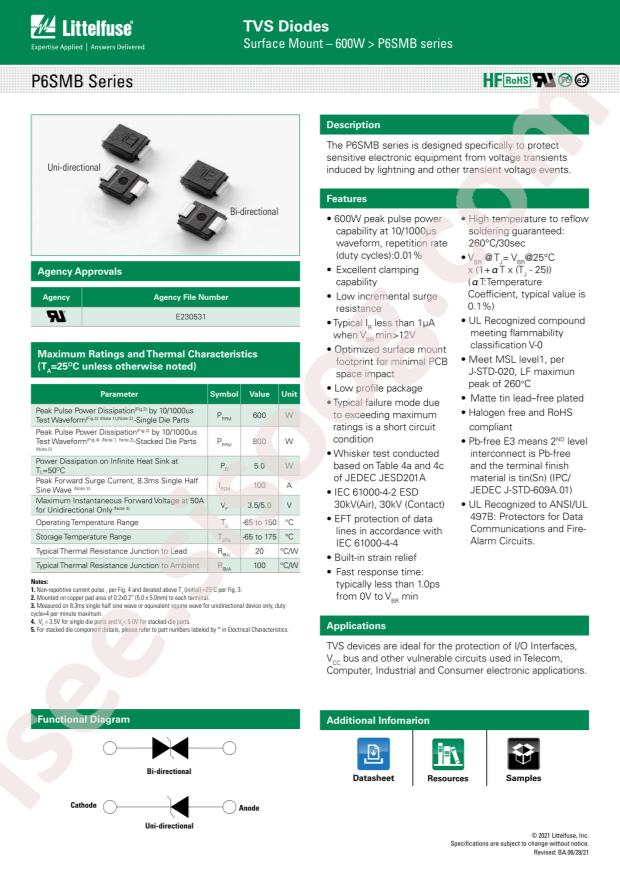

- Datasheet: Littelfuse P6SMB12CA
- Breakdown Voltage: 11.4V
- Bidirectional Channels: 1
- Maximum Clamping Voltage: 16.7V
- Reverse Leakage Current (Ir): 5uA
- Reverse Stand-Off Voltage (Vrwm): 10.2V
- Peak Pulse Current (Ipp)@10/1000us: 36.5A
- Peak Pulse Power Dissipation (Ppp)@10/1000us: 600W
- Package: SMB(DO-214AA)
- Manufacturer: Littelfuse
