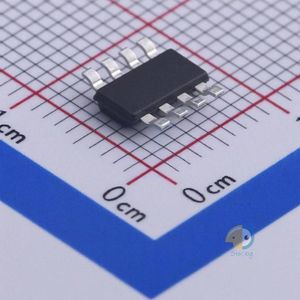

ZDT1053TA دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
ZDT1053TA
|
|
حجم فایل
|
75.307
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
Diodes Incorporated ZDT1053TA
-
Transistor Type:
2 NPN
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
5A
-
Power Dissipation (Pd):
2.75W
-
Transition Frequency (fT):
140MHz
-
DC Current Gain (hFE@Ic,Vce):
300@1A,2V
-
Collector Cut-Off Current (Icbo):
10nA
-
Collector-Emitter Breakdown Voltage (Vceo):
75V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
300mV@5A,250mA
-
Package:
SM-8
-
Manufacturer:
Diodes Incorporated
