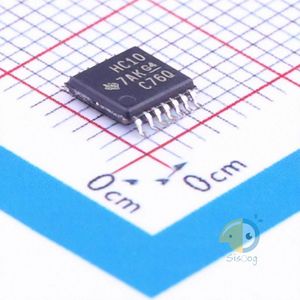

SN74HC10PWR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SN74HC10PWR
|
|
حجم فایل
|
77.821
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
22
|
مشخصات فنی
-
RoHS:
true
-
Series:
74HC
-
Category:
Logic ICs/Gates
-
Datasheet:
Texas Instruments SN74HC10PWR
-
Sink Current:
5.2mA
-
Source Current:
5.2mA
-
Supply Voltage:
2V~6V
-
Logic Gate Type:
NAND Gates
-
Number of Channels:
3
-
Low Level Range (VIL):
0.5V~1.8V
-
Operating Temperature:
-40°C~+85°C
-
High Level Range (VIH):
1.5V~4.2V
-
Propagation Delay Time:
16ns@6V,50pF
-
Quiescent Current (Max):
2uA
-
Package:
TSSOP-14
-
Manufacturer:
Texas Instruments
