- FTP03N06NA

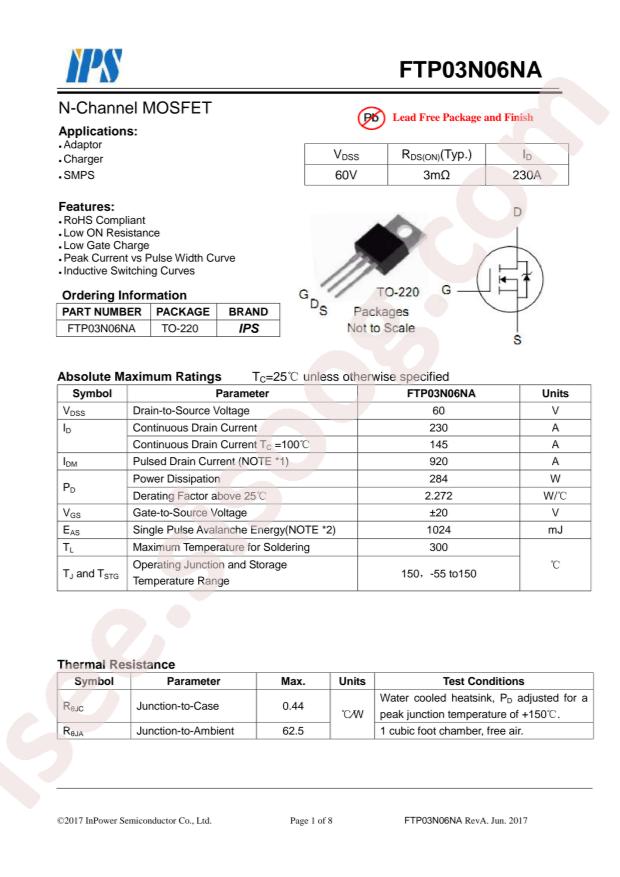

FTP03N06NA Datasheet
Datasheet specifications
| Datasheet's name | FTP03N06NA |
|---|---|
| File size | 72.79 KB |
| File type | |
| Number of pages | 8 |
Download Datasheet FTP03N06NA |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: IPS FTP03N06NA
- Operating Temperature: +150°C@(Tj)
- Power Dissipation (Pd): 284W
- Total Gate Charge (Qg@Vgs): 98.4nC@10V
- Drain Source Voltage (Vdss): 60V
- Input Capacitance (Ciss@Vds): 5.681nF@25V
- Continuous Drain Current (Id): 230A
- Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
- Reverse Transfer Capacitance (Crss@Vds): 371.5pF@25V
- Drain Source On Resistance (RDS(on)@Vgs,Id): 3mΩ@10V,95A
- Package: TO-220
- Manufacturer: IPS
