AOD5B65M1 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
AOD5B65M1
|
|
حجم فایل
|
79.744
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
15
|
مشخصات فنی
-
RoHS:
true
-
Type:
-
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-

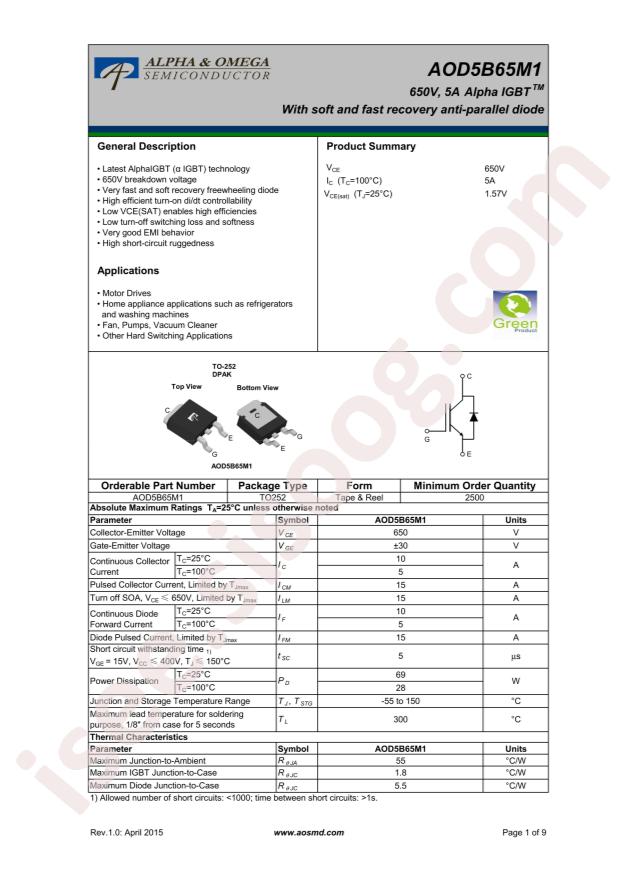

Datasheet:
Alpha & Omega Semicon AOD5B65M1
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
10A
-
Power Dissipation (Pd):
69W
-
Turn?on Delay Time (Td(on)):
8.5ns
-
Turn?on Switching Loss (Eon):
0.08mJ
-
Total Gate Charge (Qg@Ic,Vge):
14nC
-
Turn?off Delay Time (Td(off)):
106ns
-
Pulsed Collector Current (Icm):
15A
-
Turn?off Switching Loss (Eoff):
0.07mJ
-
Diode Reverse Recovery Time (Trr):
195ns
-
Collector-Emitter Breakdown Voltage (Vces):
650V
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
1.98V@15V,5A
-

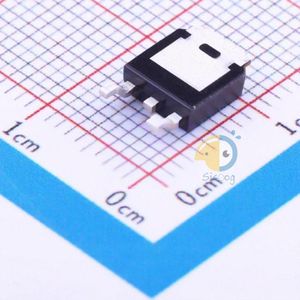

Package:
TO-252
-
Manufacturer:
Alpha & Omega Semicon
