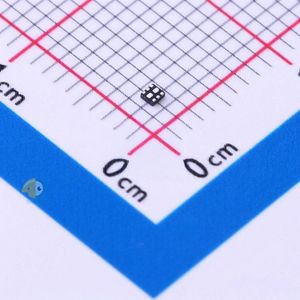

PMCXB900UELZ دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت PMCXB900UELZ	دانلود دیتاشیت

مستندات دیگری یافت نشد!

RoHS: true
Type: 1PCSN-Channel&1PCSP-Channel
Category: Triode/MOS Tube/Transistor/MOSFETs
Datasheet: Nexperia PMCXB900UELZ
Operating Temperature: -55°C~+150°C@(Tj)
Power Dissipation (Pd): 265mW
Total Gate Charge (Qg@Vgs): 0.4nC@4.5V;1.19nC@4.5V
Drain Source Voltage (Vdss): 20V
Input Capacitance (Ciss@Vds): 21.3pF@10V;43pF@10V
Continuous Drain Current (Id): 600mA;500mA
Gate Threshold Voltage (Vgs(th)@Id): 700mV@250uA
Reverse Transfer Capacitance (Crss@Vds): 4.2pF@10V;8pF@10V
Drain Source On Resistance (RDS(on)@Vgs,Id): 470mΩ@4.5V,600mA;1.02Ω@4.5V,500mA
Package: SOT1216
Manufacturer: Nexperia
