NCEP072N10 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NCEP072N10
|
|
حجم فایل
|
77.291
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Wuxi NCE Power Semiconductor NCEP072N10
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
125W
-
Total Gate Charge (Qg@Vgs):
60nC@10V
-
Drain Source Voltage (Vdss):
100V
-
Input Capacitance (Ciss@Vds):
3.6nF@50V
-
Continuous Drain Current (Id):
90A
-
Gate Threshold Voltage (Vgs(th)@Id):
3V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
19.5pF@50V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
6.8mΩ@10V,45A
-

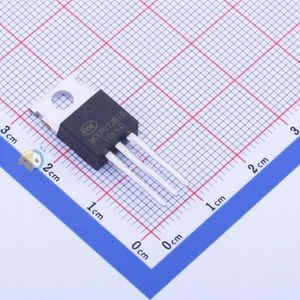

Package:
TO-220
-
Manufacturer:
Wuxi NCE Power Semiconductor
