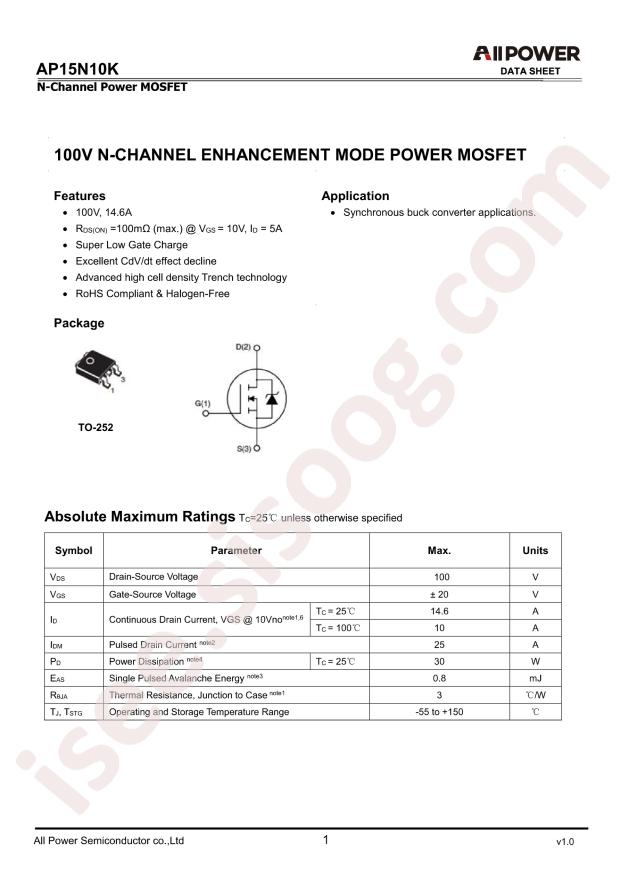

AP15N10K دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
AP15N10K
|
|
حجم فایل
|
58.854
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
ALLPOWER(ShenZhen Quan Li Semiconductor) AP15N10K
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
30W
-
Total Gate Charge (Qg@Vgs):
11.9nC@10V
-
Drain Source Voltage (Vdss):
100V
-
Input Capacitance (Ciss@Vds):
450pF@15V
-
Continuous Drain Current (Id):
14.6A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.9V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
16pF@15V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
85mΩ@10V,5A
-
Package:
TO-252
-
Manufacturer:
ALLPOWER(ShenZhen Quan Li Semiconductor)
