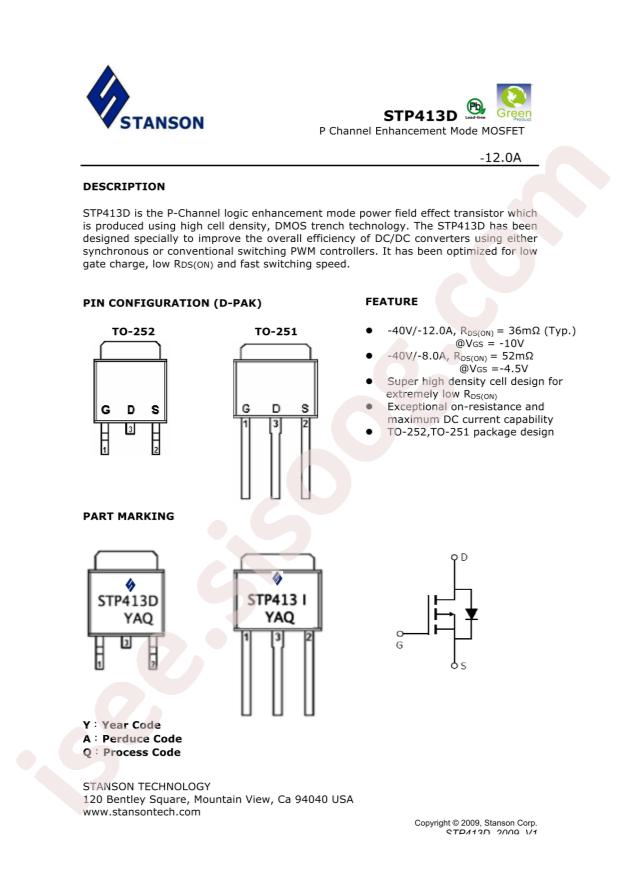

STP413D دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STP413D
|
|
حجم فایل
|
56.248
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STANSON Tech. STP413D
-
Operating Temperature:
+150°C@(Tj)
-
Power Dissipation (Pd):
50W
-
Total Gate Charge (Qg@Vgs):
-
-
Drain Source Voltage (Vdss):
40V
-
Input Capacitance (Ciss@Vds):
900pF@20V
-
Continuous Drain Current (Id):
12A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.5V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
115pF@20V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
36mΩ@10V,12A
-
Package:
TO-252
-
Manufacturer:
STANSON Tech.
