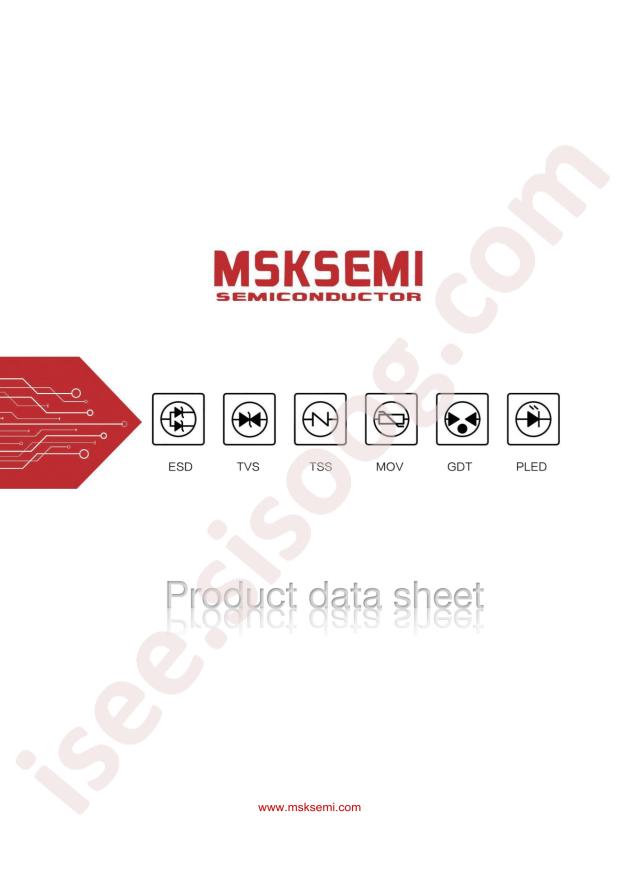

MS80N03 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MS80N03
|
|
حجم فایل
|
31.497
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
MSKSEMI MS80N03
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
105W
-
Total Gate Charge (Qg@Vgs):
41nC@10V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
1963pF@15V
-
Continuous Drain Current (Id):
80A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.7V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
221pF@15V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
3.5mΩ@10V,30A
-
Package:
TO-252
-
Manufacturer:
MSKSEMI
