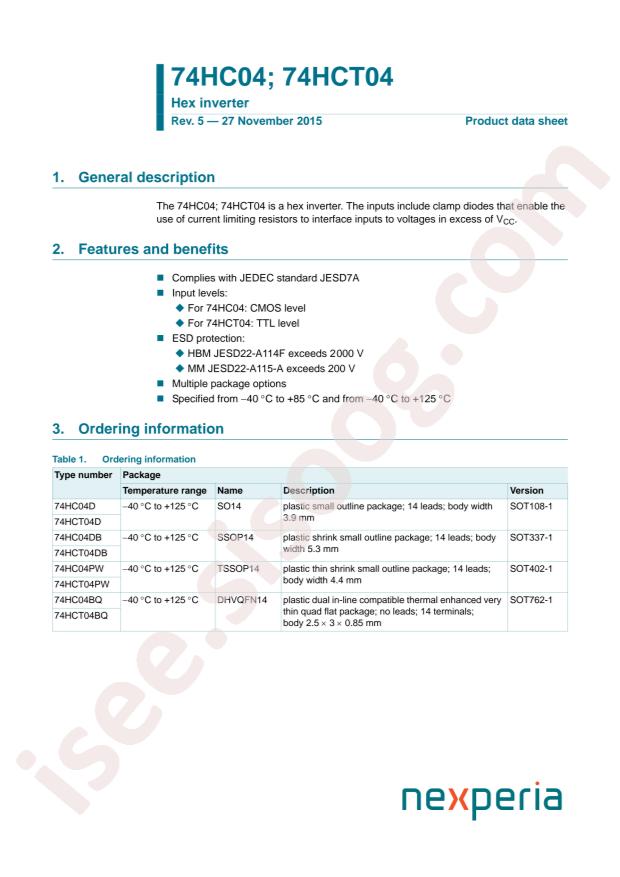

74HC04PW,118 Datasheet
Datasheet specifications
| Datasheet's name | 74HC04PW,118 |
|---|---|
| File size | 57.999 KB |
| File type | |
| Number of pages | 16 |
Download Datasheet 74HC04PW,118 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- RoHS: true
- Series: 74HC
- Category: Logic ICs/Inverters
- Datasheet: Nexperia 74HC04PW,118
- Input Type: -
- Sink Current: 5.2mA
- Source Current: 5.2mA
- Number of channels: 6
- Supply Current (Max): 2uA
- Low level range (VIL): 0.5V~1.8V
- Max Propagation Delay: 14ns@6V,50pF
- Operating Temperature: 40°C~+125°C
- High level range (VIH): 1.5V~4.2V
- Supply Voltage(Single): 2V~6V
- Package: TSSOP-14
- Manufacturer: Nexperia
