KTC9012-H-AT/PC 数据手册
其他文档
未找到其他文档！
技术规格
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT

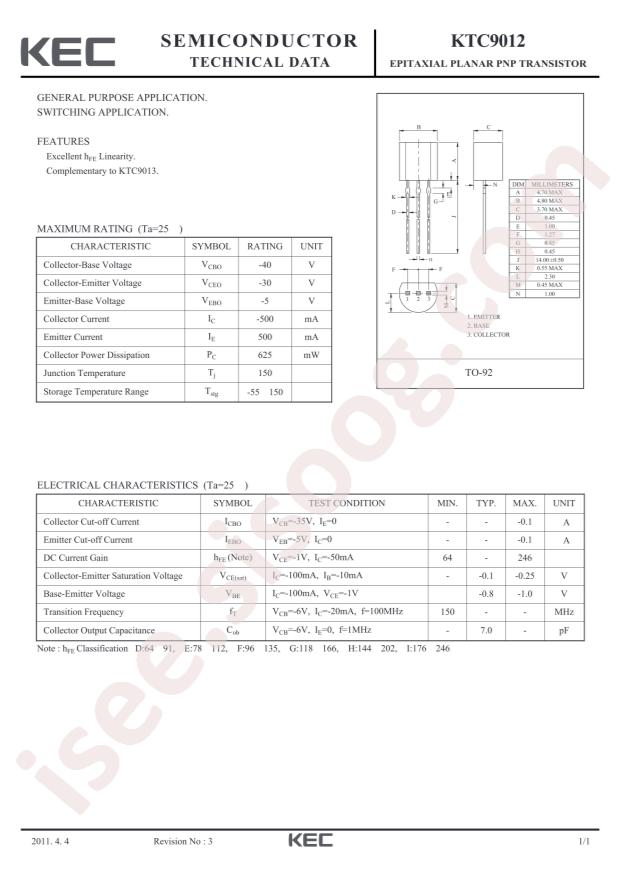

- Datasheet: KEC Semicon KTC9012-H-AT/PC
- Transistor Type: PNP
- Operating Temperature: +150°C@(Tj)
- Collector Current (Ic): 500mA
- Power Dissipation (Pd): 625mW
- Transition Frequency (fT): 150MHz
- DC Current Gain (hFE@Ic,Vce): 64@50mA,1V
- Collector Cut-Off Current (Icbo): 100nA
- Collector-Emitter Breakdown Voltage (Vceo): 30V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 100mV@100mA,10mA
- Package: TO-92-3
- Manufacturer: KEC Semicon
