YJL2301G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
YJL2301G
|
|
حجم فایل
|
61.527
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Yangzhou Yangjie Elec Tech YJL2301G
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
700mW
-
Total Gate Charge (Qg@Vgs):
3.9nC@4.5V
-
Drain Source Voltage (Vdss):
15V
-
Input Capacitance (Ciss@Vds):
260pF@10V
-
Continuous Drain Current (Id):
2A
-
Gate Threshold Voltage (Vgs(th)@Id):
620mV@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
29pF@10V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
82mΩ@4.5V,1.5A
-

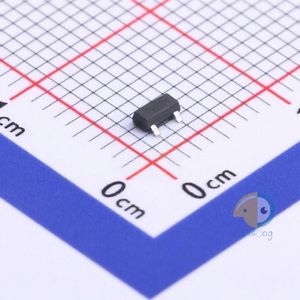

Package:
SOT-23-3L
-
Manufacturer:
Yangzhou Yangjie Elec Tech
