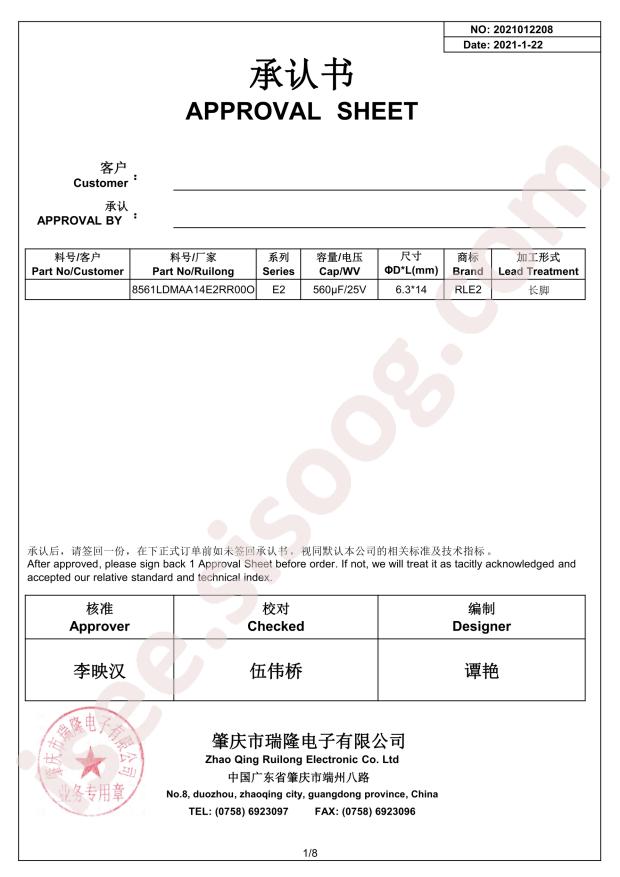

8561LDMAA14E2RR00O Datasheet
Datasheet specifications
| Datasheet's name | 8561LDMAA14E2RR00O |
|---|---|
| File size | 59.785 KB |
| File type | |
| Number of pages | 8 |
Download Datasheet 8561LDMAA14E2RR00O |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- L: 14mm
- φD: 6.3mm
- RoHS: true
- Type: Polymer
- Category: Capacitors/Solid Capacitors
- Datasheet: Zhaoqing Ruilong Elec. 8561LDMAA14E2RR00O
- Tolerance: ±20%
- Capacitance: 560uF
- Lead Spacing: 2.5mm
- Rated Voltage: 25V
- Ripple Current: 3.9A@100kHz
- Lifetime @ Temp: 2000hrs@105°C
- Operating Temperature: -55°C~+105°C
- Equivalent Series Resistance(ESR): 35mΩ@100kHz
- Package: Plugin,6.3x14mm
- Manufacturer: Zhaoqing Ruilong Elec.
