TPS73201DBVR 数据手册
其他文档
未找到其他文档！
技术规格
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)

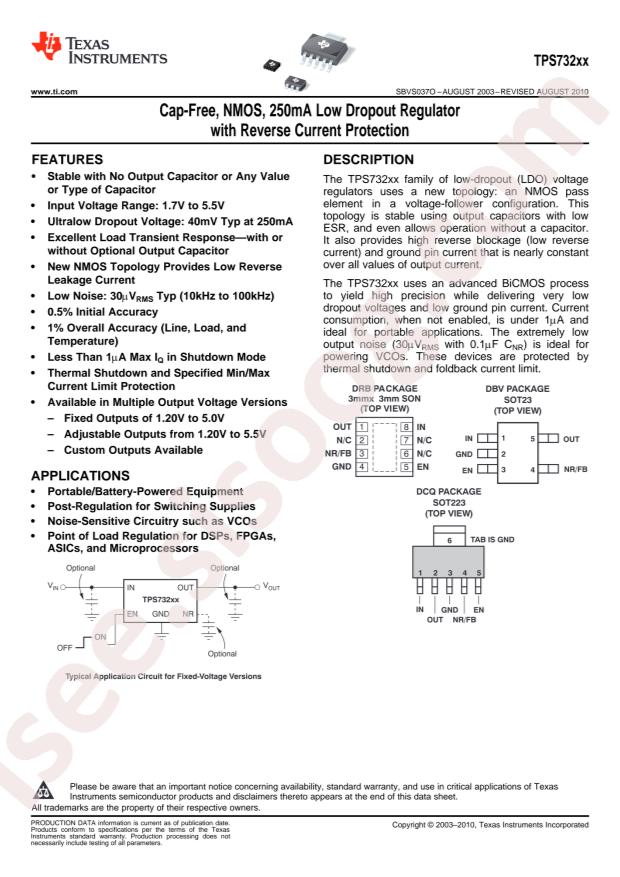

- Datasheet: Texas Instruments TPS73201DBVR
- Output Type: Adjustable
- Output Current: 250mA
- Output Voltage: 1.2V~5.5V
- Dropout Voltage: 150mV@(250mA)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 5.5V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 550uA
- Power Supply Rejection Ratio (PSRR): 58dB@(100Hz),37dB@(10kHz)
- Package: SOT-23-5
- Manufacturer: Texas Instruments
