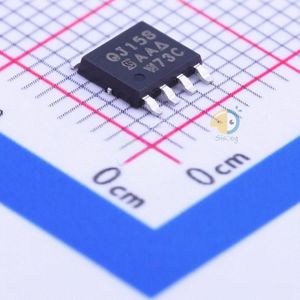

SQJ158EP-T1_GE3 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SQJ158EP-T1_GE3
|
|
حجم فایل
|
95.072
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-

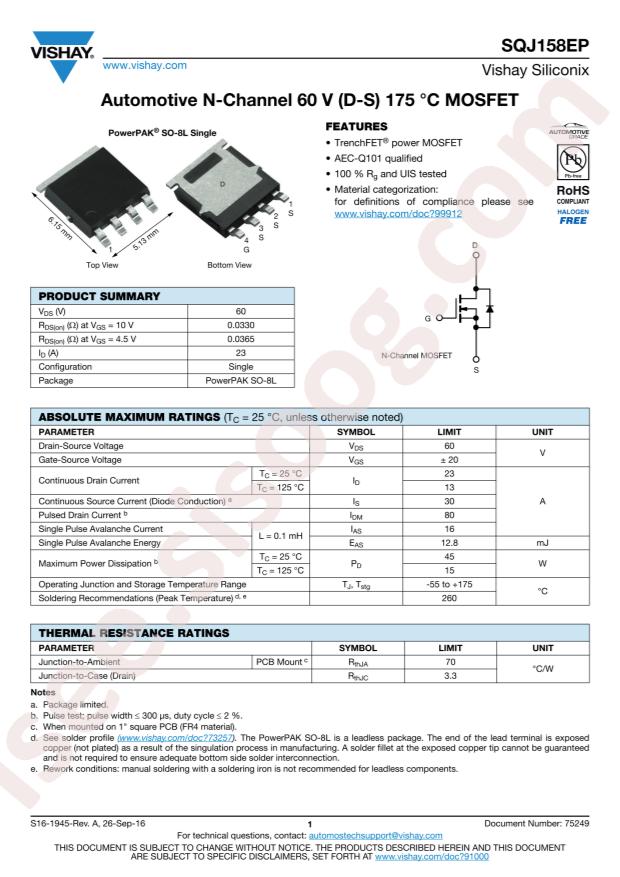

Datasheet:
Vishay Intertech SQJ158EP-T1_GE3
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
45W
-
Total Gate Charge (Qg@Vgs):
30nC@10V
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
1100pF@25V
-
Continuous Drain Current (Id):
23A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.5V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
33mΩ@10V,7A
-
Package:
PowerPAK-SO-8
-
Manufacturer:
Vishay Intertech
