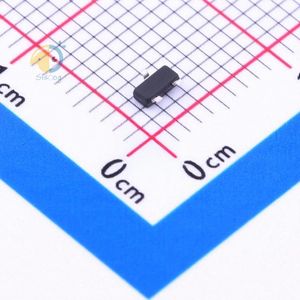

- Datasheet MMBTA42Q-7-F
MMBTA42-7-F Datasheet
Datasheet specifications
| Datasheet's name | MMBTA42Q-7-F |
|---|---|
| File size | 80.714 KB |
| File type | |
| Number of pages | 5 |
Download Datasheet MMBTA42Q-7-F |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet: Diodes Incorporated MMBTA42-7-F
- Transistor Type: NPN
- Operating Temperature: -55°C~+150°C@(Tj)
- Collector Current (Ic): 500mA
- Power Dissipation (Pd): 300mW
- Transition Frequency (fT): 50MHz
- DC Current Gain (hFE@Ic,Vce): 40@30mA,10V
- Collector Cut-Off Current (Icbo): 100nA
- Collector-Emitter Breakdown Voltage (Vceo): 300V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 500mV@20mA,2mA
- Package: SOT-23
- Manufacturer: Diodes Incorporated
