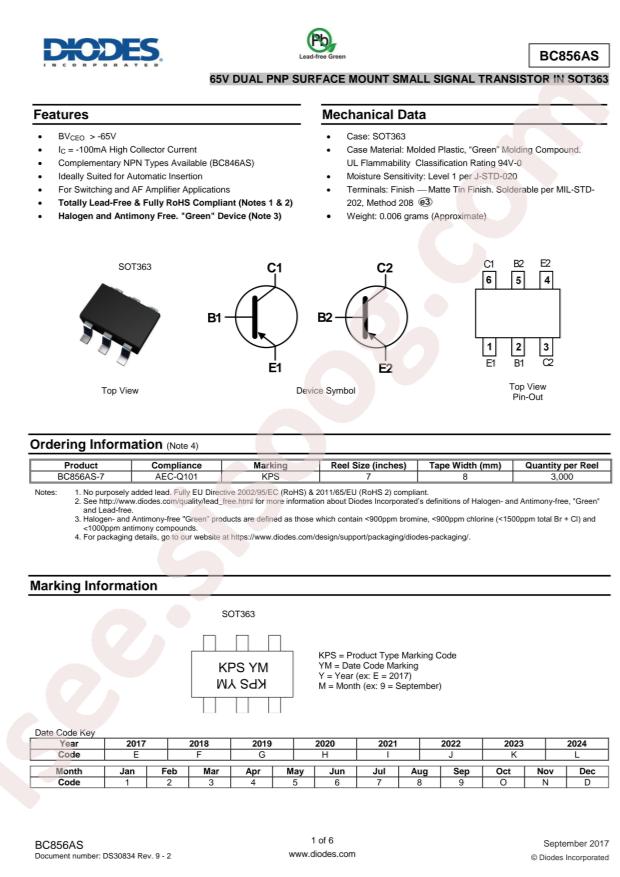

BC856AS-7 Datasheet
Datasheet specifications
| Datasheet's name | BC856AS-7 |
|---|---|
| File size | 80.46 KB |
| File type | |
| Number of pages | 6 |
Download Datasheet BC856AS-7 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet: Diodes Incorporated BC856AS-7
- Transistor Type: 2PCSPNP
- Operating Temperature: -65°C~+150°C@(Tj)
- Collector Current (Ic): 100mA
- Power Dissipation (Pd): 200mW
- Transition Frequency (fT): 100MHz
- DC Current Gain (hFE@Ic,Vce): 125@2mA,5V
- Collector Cut-Off Current (Icbo): 15nA
- Collector-Emitter Breakdown Voltage (Vceo): 65V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 250mV@100mA,5mA
- Package: SOT-363-6(SC-70-6)
- Manufacturer: Diodes Incorporated
