دیتاشیت 2N7002T-HAF
مشخصات دیتاشیت
| نام دیتاشیت |
2N7002T-HAF
|
| حجم فایل |
56.457
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Jiangsu Changjing Electronics Technology Co., Ltd. 2N7002T-HAF
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
150mW
-
Total Gate Charge (Qg@Vgs):
-
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
50pF@25V
-
Continuous Drain Current (Id):
115mA
-
Gate Threshold Voltage (Vgs(th)@Id):
2.5V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
5pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
5Ω@10V,500mA
-

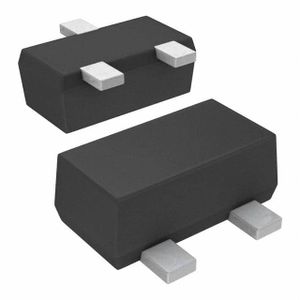

Package:
SOT-523
-
Manufacturer:
Jiangsu Changjing Electronics Technology Co., Ltd.
