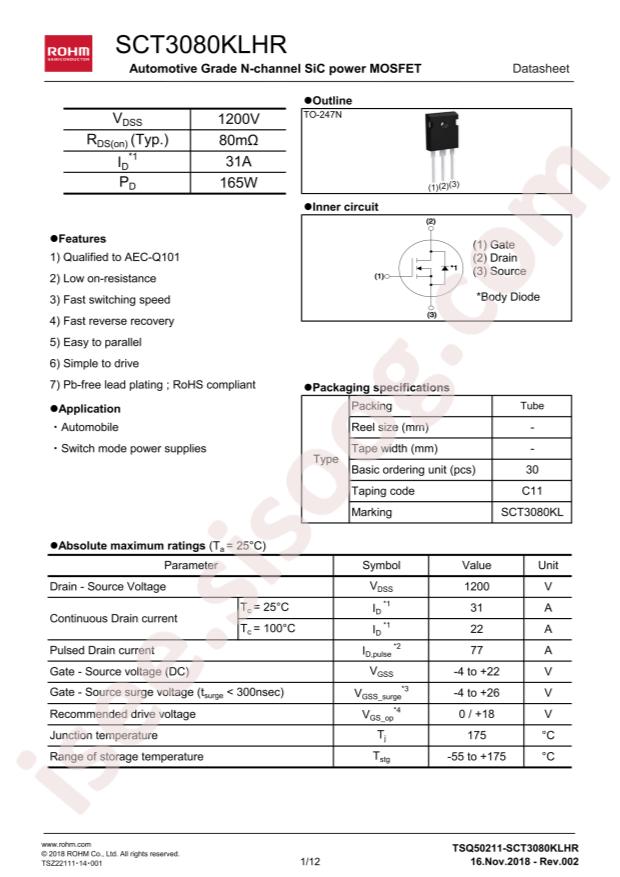

SCT3080KLHRC11 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SCT3080KLHRC11
|
|
حجم فایل
|
75.197
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
13
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
ROHM Semicon SCT3080KLHRC11
-
Operating Temperature:
+175°C@(Tj)
-
Power Dissipation (Pd):
165W
-
Total Gate Charge (Qg@Vgs):
60nC@18V
-
Drain Source Voltage (Vdss):
1.2kV
-
Input Capacitance (Ciss@Vds):
785pF@800V
-
Continuous Drain Current (Id):
31A
-
Gate Threshold Voltage (Vgs(th)@Id):
5.6V@5mA
-
Reverse Transfer Capacitance (Crss@Vds):
35pF@800V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
80mΩ@18V,10A
-
Package:
TO-247-3
-
Manufacturer:
ROHM Semicon
