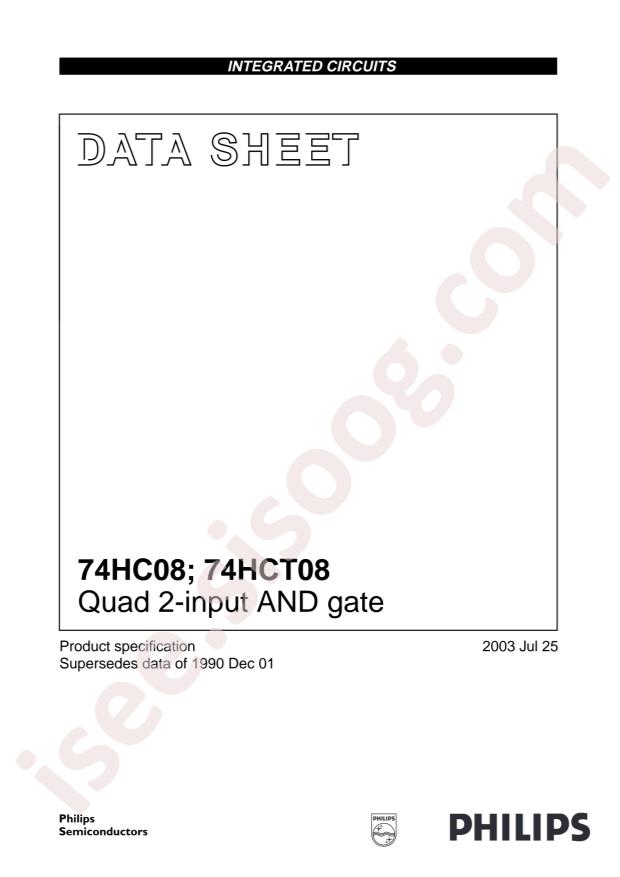

74HCT08 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
74HCT08
|
|
حجم فایل
|
111.093
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
20
|
مشخصات فنی
-
RoHS:
true
-
Series:
74HCT
-
Category:
Logic ICs/Gates
-
Datasheet:
Nexperia 74HCT08D,653
-
Sink Current:
4mA
-
Source Current:
4mA
-
Supply Voltage:
4.5V~5.5V
-
Logic Gate Type:
And
-
Number of Channels:
4
-
Low Level Range (VIL):
0.8V
-
Operating Temperature:
-40°C~+125°C
-
High Level Range (VIH):
2V
-
Propagation Delay Time:
24ns@4.5V,50pF
-
Quiescent Current (Max):
2uA
-
Package:
SOP-14
-
Manufacturer:
Nexperia
