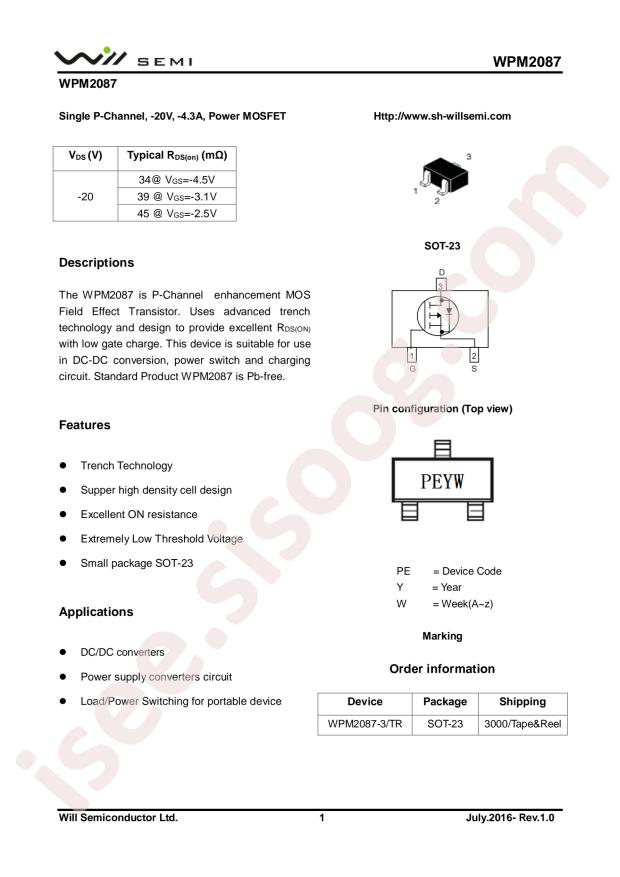

WPM2087-3/TR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
WPM2087-3/TR
|
|
حجم فایل
|
54.301
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
WILLSEMI(Will Semicon) WPM2087-3/TR
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
900mW
-
Total Gate Charge (Qg@Vgs):
12nC@4.5V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
1.182nF@10V
-
Continuous Drain Current (Id):
3.6A
-
Gate Threshold Voltage (Vgs(th)@Id):
750mV@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
108pF@10V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
34mΩ@4.5V,5A
-

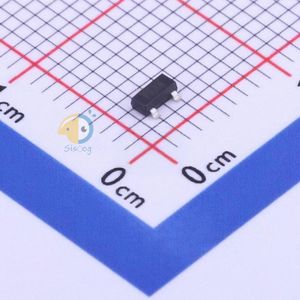

Package:
SOT-23
-
Manufacturer:
WILLSEMI(Will Semicon)
