BTS282Z E3230 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
BTS282Z E3230
|
|
حجم فایل
|
64.439
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-

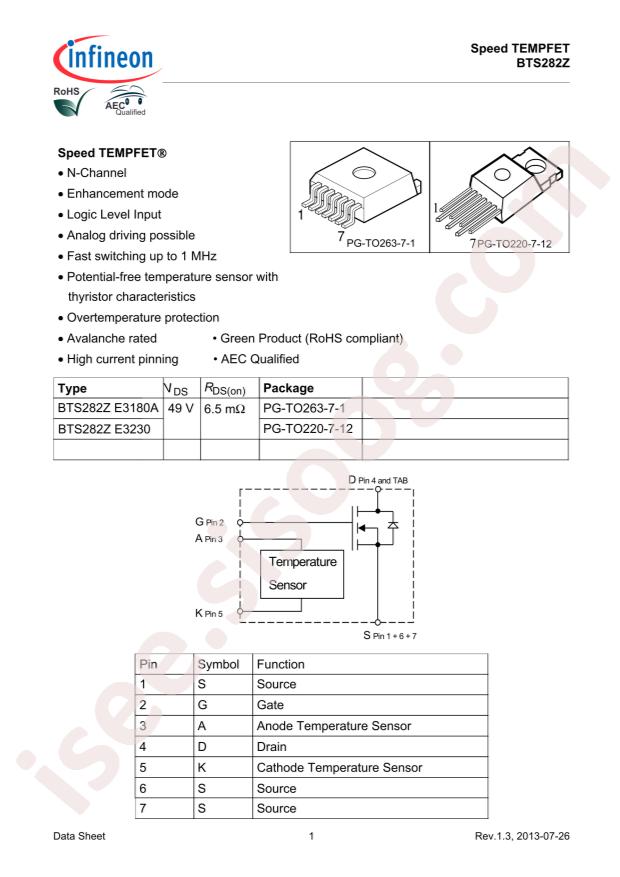

Datasheet:
Infineon Technologies BTS282Z E3230
-
Operating Temperature:
-40°C~+175°C@(Tj)
-
Power Dissipation (Pd):
300W
-
Total Gate Charge (Qg@Vgs):
232nC@10V
-
Drain Source Voltage (Vdss):
49V
-
Input Capacitance (Ciss@Vds):
4800pF@25V
-
Continuous Drain Current (Id):
80A
-
Gate Threshold Voltage (Vgs(th)@Id):
2V@240uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
6.5mΩ@10V,36A
-
Package:
TO-220-7(Forming)
-
Manufacturer:
Infineon Technologies
