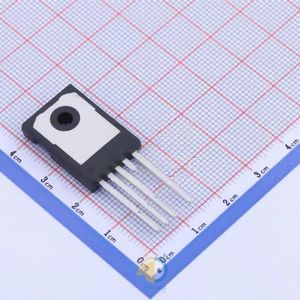

NTH4L045N065SC1 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NTH4L045N065SC1
|
|
حجم فایل
|
50.018
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NTH4L045N065SC1
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
187W
-
Total Gate Charge (Qg@Vgs):
105nC@-5~18V
-
Drain Source Voltage (Vdss):
650V
-
Input Capacitance (Ciss@Vds):
1.87nF@325V
-
Continuous Drain Current (Id):
55A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.8V@8mA
-
Reverse Transfer Capacitance (Crss@Vds):
14pF@325V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
33mΩ@18V,25A
-
Package:
TO-247-4
-
Manufacturer:
onsemi
