دیتاشیت STM32F334R8T6
مشخصات دیتاشیت
| نام دیتاشیت | STM32F334x4,x6,x8 Datasheet |
|---|---|
| حجم فایل | 2662.988 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 125 |

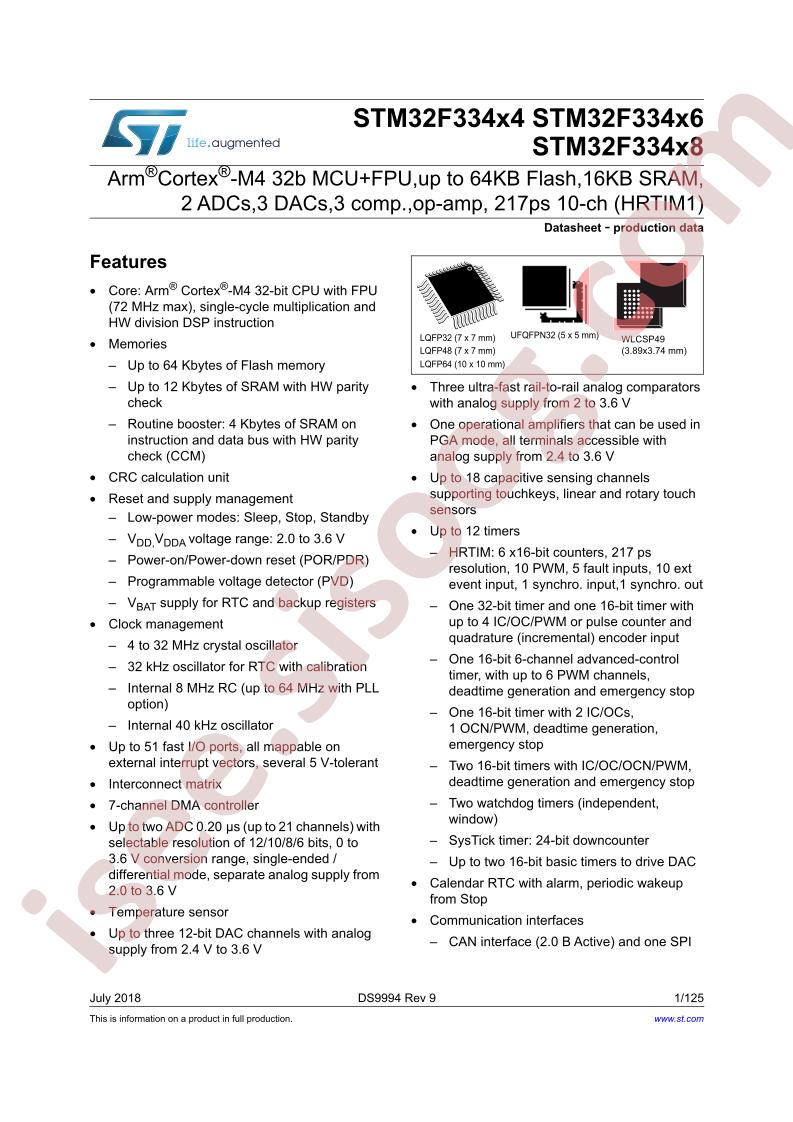

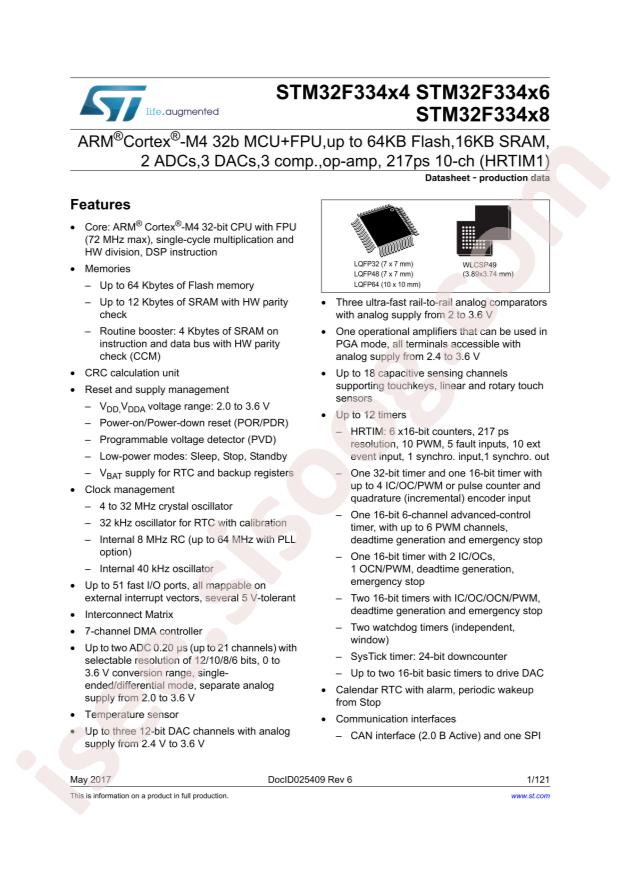

دانلود دیتاشیت STM32F334x4,x6,x8 Datasheet |
STM32F334x4,x6,x8 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: -
- CPU Core: ARM Cortex-M4
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 12KB
- Watchdog: Yes
- ADC (Bit): 12bit
- DAC (Bit): 12bit
- Datasheet: STMicroelectronics STM32F334R8T6
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 72MHz
- GPIO Ports Number: 51
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: DMA;PWM
- Program Memory Type: FLASH
- Direct Memory Access: Yes
- Program Storage Size: 64KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 2V~3.6V
- Infrared Data Association: Yes
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: LQFP-64(10x10)
- Manufacturer: STMicroelectronics
- Series: STM32F3
- Packaging: Tray
- Part Status: Active
- Core Processor: ARM® Cortex®-M4
- Core Size: 32-Bit
- Speed: 72MHz
- Connectivity: CANbus, I²C, IrDA, LINbus, SPI, UART/USART
- Peripherals: DMA, POR, PWM, WDT
- Number of I/O: 51
- Program Memory Size: 64KB (64K x 8)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 2V ~ 3.6V
- Data Converters: A/D 21x12b; D/A 3x12b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 64-LQFP
- Supplier Device Package: 64-LQFP (10x10)
- Base Part Number: STM32F334
- detail: ARM® Cortex®-M4 STM32F3 Microcontroller IC 32-Bit 72MHz 64KB (64K x 8) FLASH 64-LQFP (10x10)
