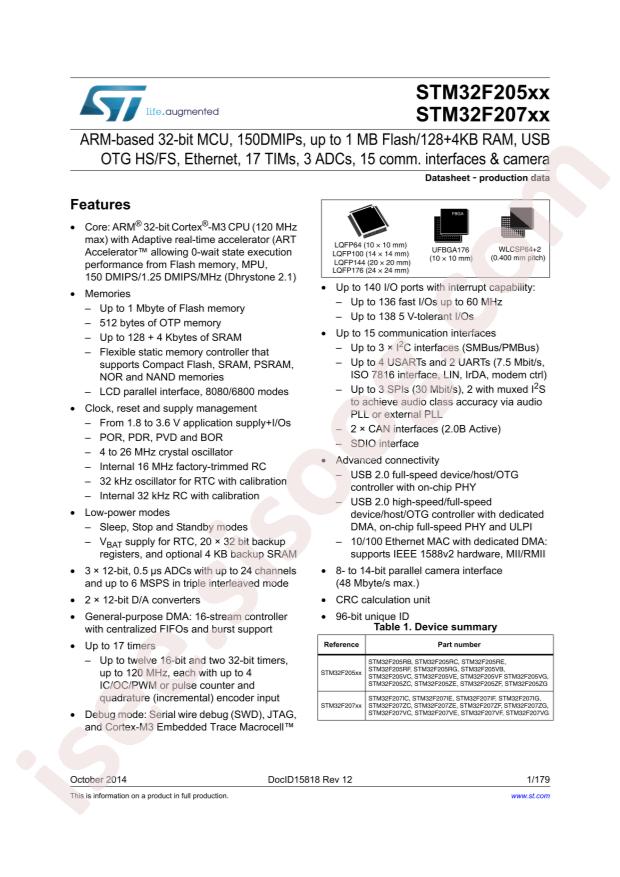

دیتاشیت STM32F205ZET6
مشخصات دیتاشیت
| نام دیتاشیت | STM32F205,207xx Datasheet |
|---|---|
| حجم فایل | 3227.827 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 183 |
دانلود دیتاشیت STM32F205,207xx Datasheet |
STM32F205,207xx Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: -
- CPU Core: ARM Cortex-M3
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 132KB
- Watchdog: Yes
- ADC (Bit): 12bit
- DAC (Bit): 12bit
- Datasheet: STMicroelectronics STM32F205ZET6
- PWM (Bit): -
- LCD Module: Yes
- Real-Time Clock: -
- CPU Maximum Speed: 120MHz
- GPIO Ports Number: 114
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: DMA;LCD/LED Driver;PWM
- Program Memory Type: FLASH
- Direct Memory Access: Yes
- Program Storage Size: 512KB
- Universal Serial Bus: Yes
- communication protocol: -
- Operating Voltage Range: 1.8V~3.6V
- Infrared Data Association: Yes
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: LQFP-144(20x20)
- Manufacturer: STMicroelectronics
- Series: STM32F2
- Packaging: Tray
- Part Status: Active
- Core Processor: ARM® Cortex®-M3
- Core Size: 32-Bit
- Speed: 120MHz
- Connectivity: CANbus, I²C, IrDA, LINbus, MMC, SPI, UART/USART, USB OTG
- Peripherals: Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
- Number of I/O: 114
- Program Memory Size: 512KB (512K x 8)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V
- Data Converters: A/D 24x12b; D/A 2x12b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 144-LQFP
- Supplier Device Package: 144-LQFP (20x20)
- Base Part Number: STM32F205
- detail: ARM® Cortex®-M3 STM32F2 Microcontroller IC 32-Bit 120MHz 512KB (512K x 8) FLASH 144-LQFP (20x20)
