دیتاشیت STM32F205VCT6

مشخصات دیتاشیت

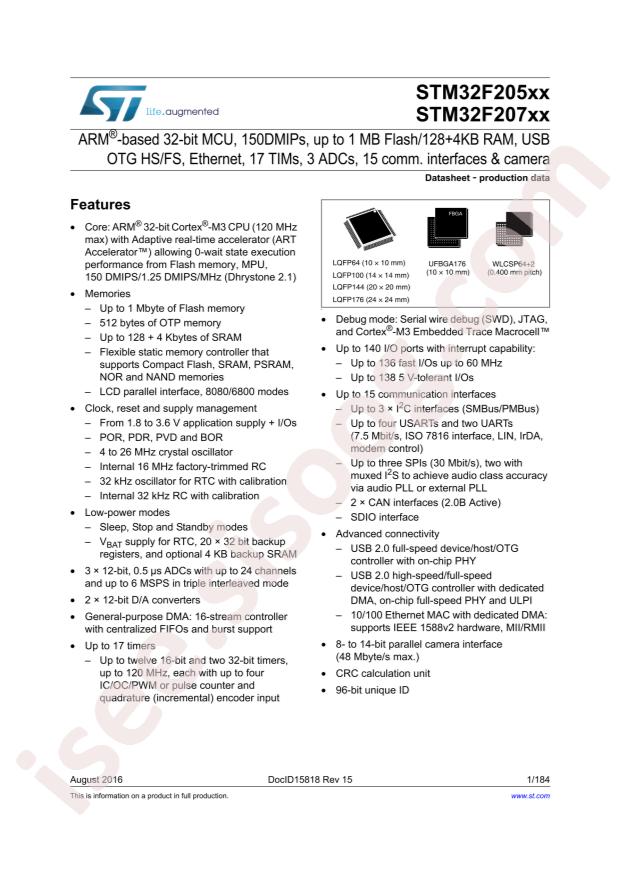

دانلود دیتاشیت STM32F205,207xx Datasheet	STM32F205,207xx Datasheet Datasheet

RoHS: true
CPU Core: ARM Cortex-M3
Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
Watchdog: Yes
ADC (Bit): 12bit
DAC (Bit): 12bit
Datasheet: STMicroelectronics STM32F205VCT6
LCD Module: Yes
CPU Maximum Speed: 120MHz
GPIO Ports Number: 82
Low-Voltage Detect: Yes
Internal Oscillator: Yes
Direct Memory Access: Yes
Program Storage Size: 256KB
Universal Serial Bus: Yes
Operating Voltage Range: 1.8V~3.6V
Infrared Data Association: Yes
Operating Temperature Range: -40°C~+85°C
Package: LQFP-100(14x14)
Manufacturer: STMicroelectronics
Series: STM32F2
Packaging: Tray
Part Status: Active
Core Processor: ARM® Cortex®-M3
Core Size: 32-Bit
Speed: 120MHz
Connectivity: CANbus, I²C, IrDA, LINbus, MMC, SPI, UART/USART, USB OTG
Peripherals: Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
Number of I/O: 82
Program Memory Size: 256KB (256K x 8)
Program Memory Type: FLASH
EEPROM Size: -
RAM Size: 100K x 8
Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V
Data Converters: A/D 16x12b; D/A 2x12b
Oscillator Type: Internal
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Package / Case: 100-LQFP
Supplier Device Package: 100-LQFP (14x14)
Base Part Number: STM32F205
detail: ARM® Cortex®-M3 STM32F2 Microcontroller IC 32-Bit 120MHz 256KB (256K x 8) FLASH 100-LQFP (14x14)
