دیتاشیت ATMEGA48A-PU
مشخصات دیتاشیت
| نام دیتاشیت | ATmega48A/PA/88A/PA/168A/PA/328/P |
|---|---|
| حجم فایل | 34343.538 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 662 |
دانلود دیتاشیت ATmega48A/PA/88A/PA/168A/PA/328/P |

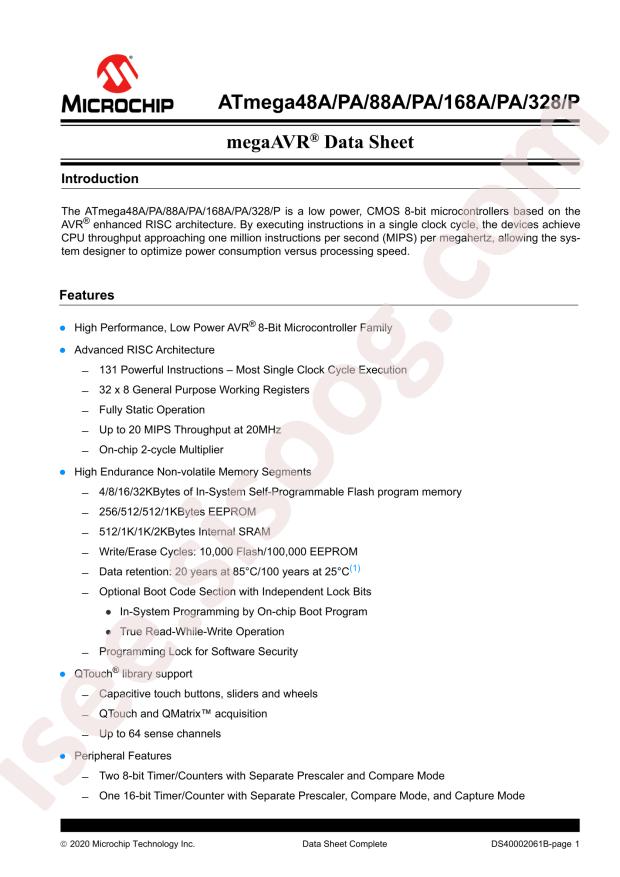

ATmega48A/PA/88A/PA/168A/PA/328/P Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: 256Byte
- CPU Core: AVR
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: -
- Watchdog: Yes
- ADC (Bit): 10bit
- DAC (Bit): -
- Datasheet: Microchip Tech ATMEGA48A-PU
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 20MHz
- GPIO Ports Number: 23
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: PWM
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 4KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.8V~5.5V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: PDIP-28
- Manufacturer: Microchip Tech
- Series: AVR® ATmega
- Packaging: Tube
- Part Status: Active
- Core Processor: AVR
- Core Size: 8-Bit
- Speed: 20MHz
- Connectivity: I²C, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
- Number of I/O: 23
- Program Memory Size: 4KB (2K x 16)
- EEPROM Size: 256 x 8
- Voltage - Supply (Vcc/Vdd): 1.8V ~ 5.5V
- Data Converters: A/D 6x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Through Hole
- Package / Case: 28-DIP (0.300", 7.62mm)
- Supplier Device Package: 28-PDIP
- Base Part Number: ATMEGA48A
- detail: AVR AVR® ATmega Microcontroller IC 8-Bit 20MHz 4KB (2K x 16) FLASH 28-PDIP
