دیتاشیت STM8L001J3M3

مشخصات دیتاشیت

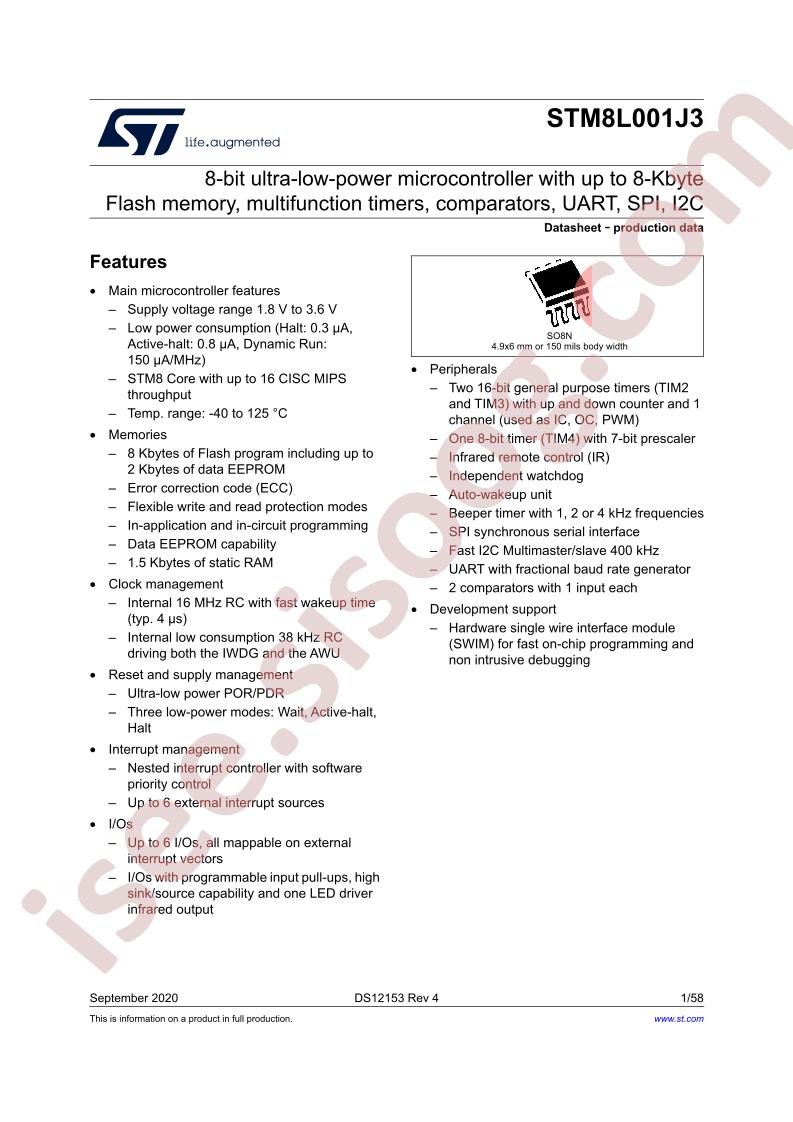

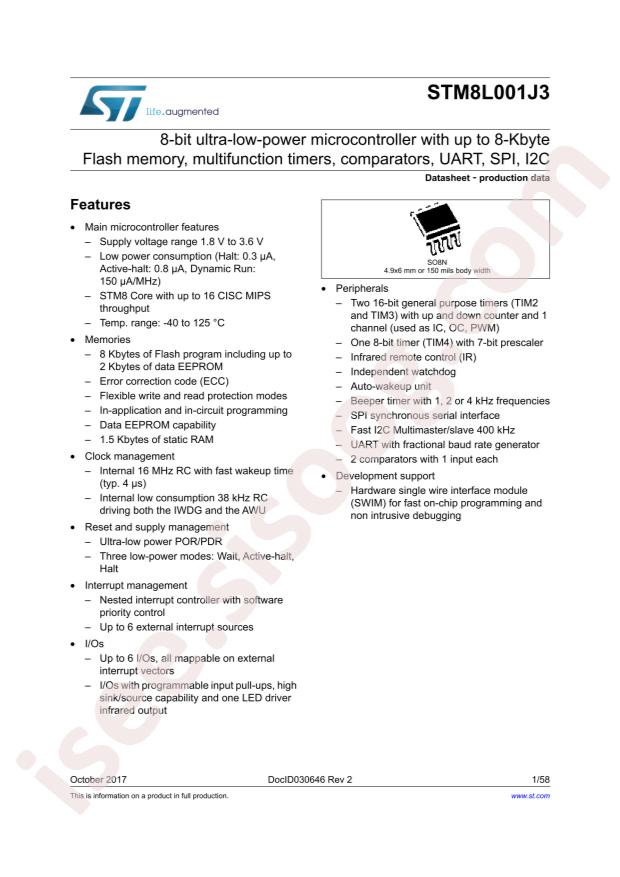

دانلود دیتاشیت STM8L001J3 Datasheet	STM8L001J3 Datasheet Datasheet

RoHS: true
EEPROM: -
CPU Core: STM8
Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
RAM Size: 1.5KB
Watchdog: -
ADC (Bit): -
DAC (Bit): -
Datasheet: STMicroelectronics STM8L001J3M3
PWM (Bit): -
Real-Time Clock: -
CPU Maximum Speed: 16MHz
GPIO Ports Number: 6
Low-Voltage Detect: -
CCP Capture/Compare: -
Internal Comparator: -
Internal Oscillator: Yes
Peripheral/Function: DMA;IrDA;WDT
Program Memory Type: FLASH
Direct Memory Access: -
Program Storage Size: 8KB
Universal Serial Bus: -
communication protocol: -
Operating Voltage Range: 1.8V~3.6V
Infrared Data Association: -
Operating Temperature Range: -40°C~+125°C
Secure Digital Input and Output: Yes
Package: SOP-8-150mil
Manufacturer: STMicroelectronics
Mfr: STMicroelectronics
Series: STM8L EnergyLite
Part Status: Active
Core Processor: STM8
Core Size: 8-Bit
Speed: 16MHz
Connectivity: I²C, SPI, UART/USART
Peripherals: DMA, IR, POR, PWM, WDT
Program Memory Size: 8KB (8K x 8)
EEPROM Size: 2K x 8
Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V
Data Converters: -
Oscillator Type: Internal
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SO
Number of I/O: 6
Base Product Number: STM8L
