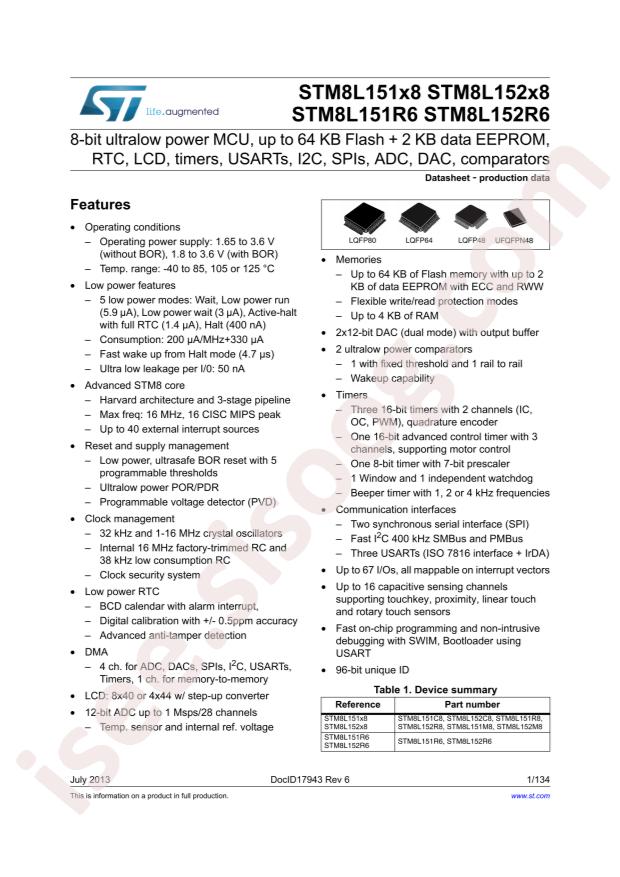

دیتاشیت STM8L151C8T6
مشخصات دیتاشیت
| نام دیتاشیت | STM8L151x(6,8), 152x(6,8) |
|---|---|
| حجم فایل | 3039.021 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 147 |
دانلود دیتاشیت STM8L151x(6,8), 152x(6,8) |

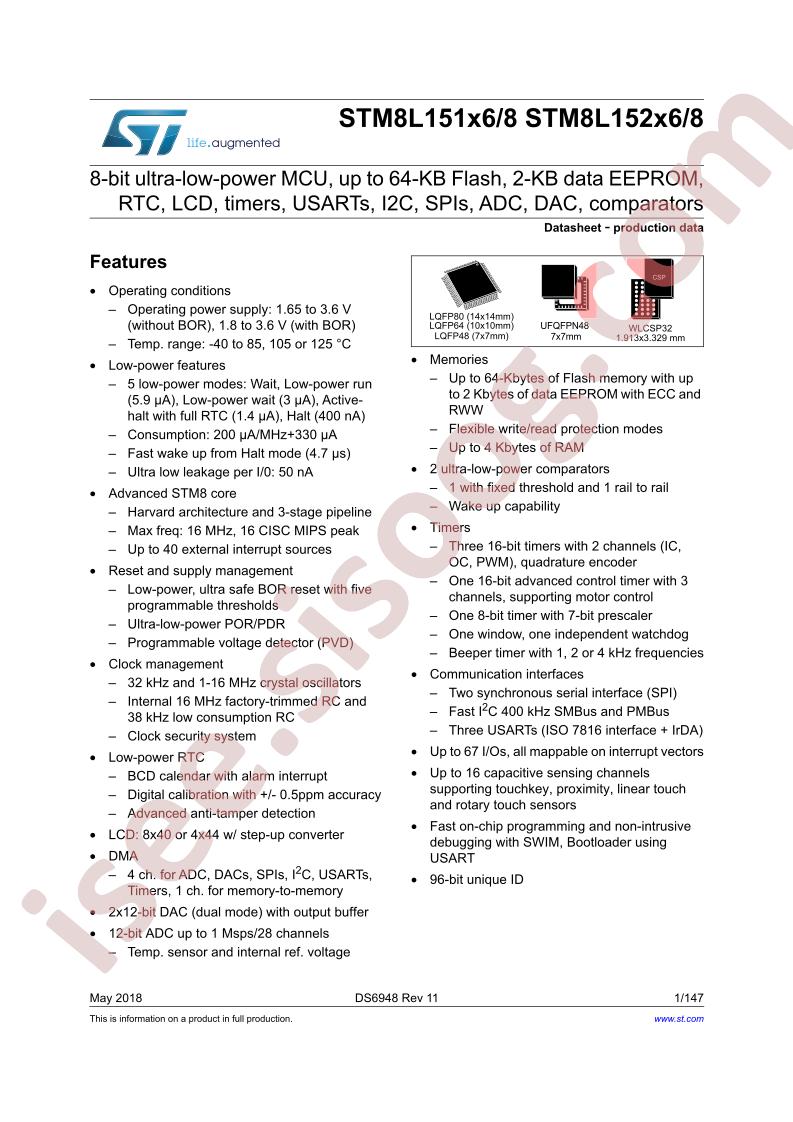

STM8L151x(6,8), 152x(6,8) Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: -
- CPU Core: STM8
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 4KB
- Watchdog: Yes
- ADC (Bit): 12bit
- DAC (Bit): 12bit
- Datasheet: STMicroelectronics STM8L151C8T6
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 16MHz
- GPIO Ports Number: 41
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: IrDA;PWM
- Program Memory Type: FLASH
- Direct Memory Access: Yes
- Program Storage Size: 64KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.8V~3.6V
- Infrared Data Association: Yes
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: LQFP-48(7x7)
- Manufacturer: STMicroelectronics
- Mfr: STMicroelectronics
- Series: STM8L EnergyLite
- Part Status: Active
- Core Processor: STM8
- Core Size: 8-Bit
- Speed: 16MHz
- Connectivity: I²C, IrDA, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, DMA, IR, POR, PWM, WDT
- Program Memory Size: 64KB (64K x 8)
- EEPROM Size: 2K x 8
- Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V
- Data Converters: A/D 25x12b; D/A 2x12b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 48-LQFP
- Supplier Device Package: 48-LQFP (7x7)
- Number of I/O: 41
- Base Product Number: STM8L
