دیتاشیت STM32L011F4P6

مشخصات دیتاشیت

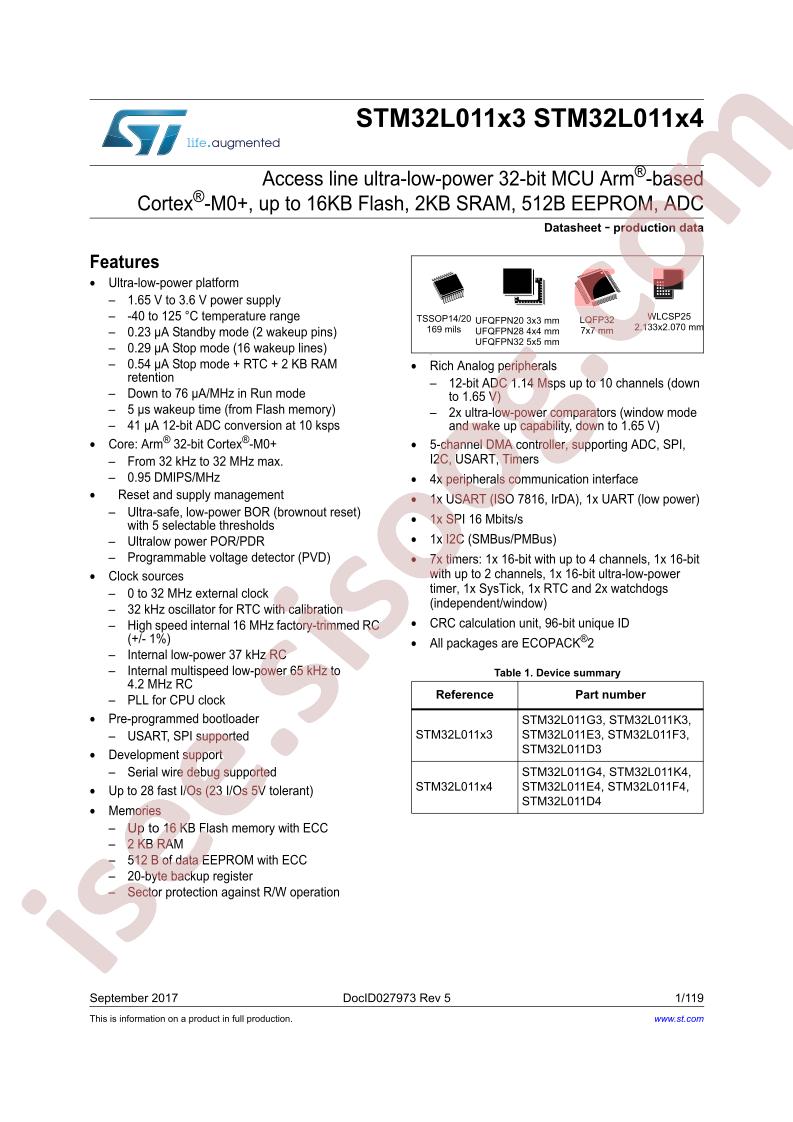

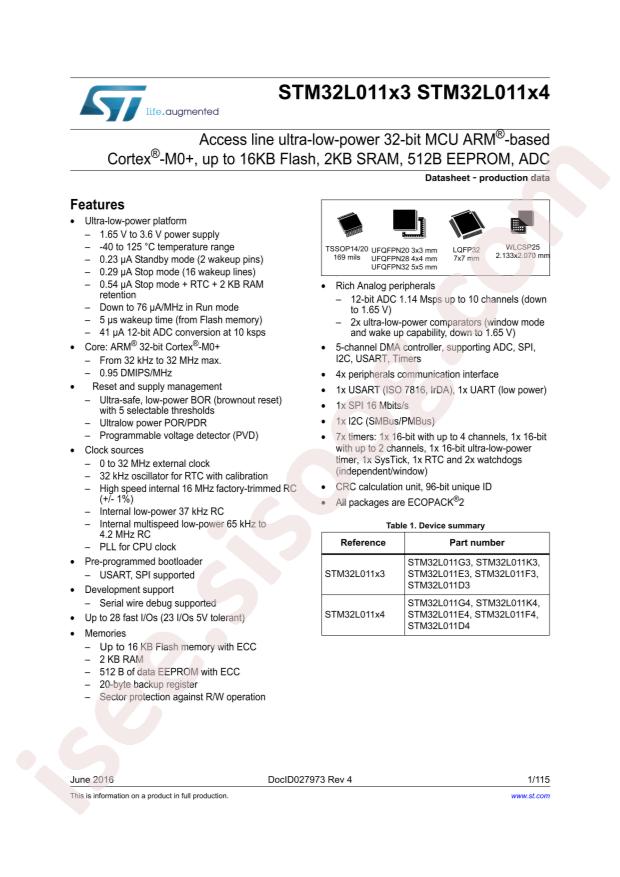

دانلود دیتاشیت STM32L011x3, STM32L011x4	STM32L011x3, STM32L011x4 Datasheet

RoHS: true
CPU Core: ARM-MSeries
Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
Watchdog: Yes
ADC (Bit): 12bit
Datasheet: STMicroelectronics STM32L011F4P6
CPU Maximum Speed: 32MHz
GPIO Ports Number: 16
Low-Voltage Detect: Yes
Internal Oscillator: Yes
Direct Memory Access: Yes
Program Storage Size: 16KB
Operating Voltage Range: 1.65V~3.6V
Infrared Data Association: Yes
Operating Temperature Range: -40°C~+85°C
Package: TSSOP-20
Manufacturer: STMicroelectronics
Mfr: STMicroelectronics
Series: STM32L0
Part Status: Active
Core Processor: ARM® Cortex®-M0+
Core Size: 32-Bit
Speed: 32MHz
Connectivity: I²C, IrDA, SPI, UART/USART
Peripherals: Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Size: 16KB (16K x 8)
Program Memory Type: FLASH
EEPROM Size: 512 x 8
RAM Size: 2K x 8
Voltage - Supply (Vcc/Vdd): 1.65V ~ 3.6V
Data Converters: A/D 9x12b
Oscillator Type: Internal
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Package / Case: 20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package: 20-TSSOP
Number of I/O: 16
Base Product Number: STM32L011
