دیتاشیت STM32F072VBT6
مشخصات دیتاشیت
| نام دیتاشیت | STM32F072x8, STM32F072xB |
|---|---|
| حجم فایل | 2158.858 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 128 |
دانلود دیتاشیت STM32F072x8, STM32F072xB |

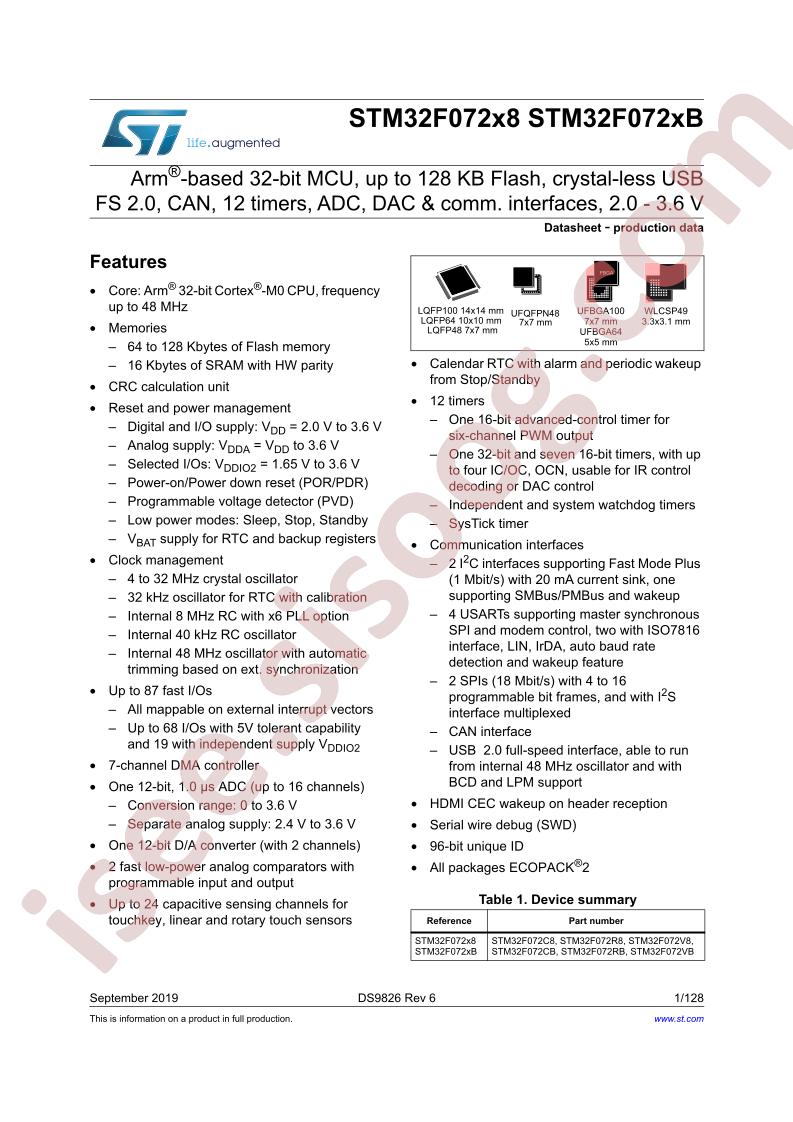

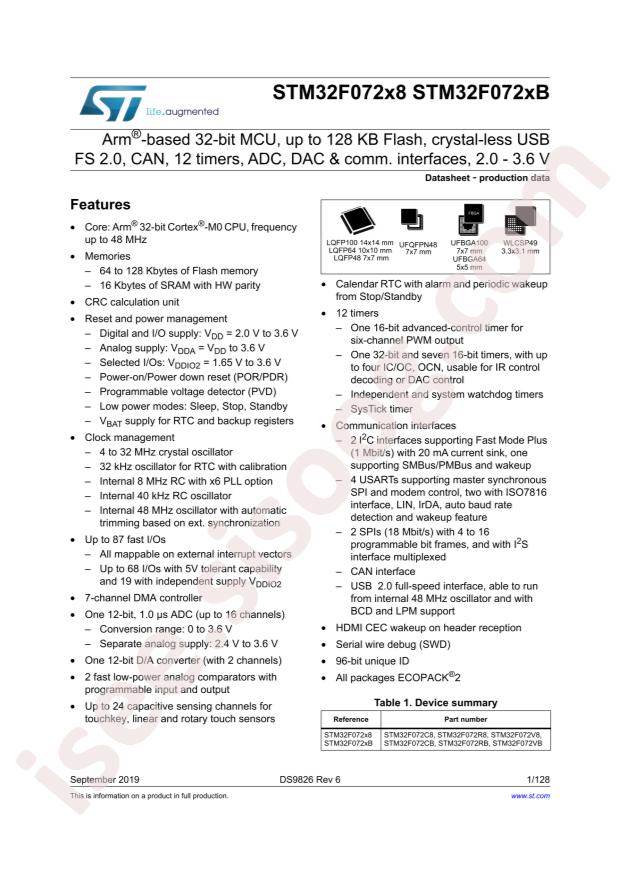

STM32F072x8, STM32F072xB Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: -
- CPU Core: ARM Cortex-M0
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 16KB
- Watchdog: Yes
- ADC (Bit): 12bit
- DAC (Bit): 12bit
- Datasheet: STMicroelectronics STM32F072VBT6
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 48MHz
- GPIO Ports Number: 87
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: DMA;WDT
- Program Memory Type: FLASH
- Direct Memory Access: Yes
- Program Storage Size: 128KB
- Universal Serial Bus: Yes
- communication protocol: -
- Operating Voltage Range: 1.65V~3.6V
- Infrared Data Association: Yes
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: LQFP-100(14x14)
- Manufacturer: STMicroelectronics
- Series: STM32F0
- Packaging: Tray
- Part Status: Active
- Core Processor: ARM® Cortex®-M0
- Core Size: 32-Bit
- Speed: 48MHz
- Connectivity: CANbus, HDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART, USB
- Peripherals: DMA, I²S, POR, PWM, WDT
- Number of I/O: 87
- Program Memory Size: 128KB (128K x 8)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 1.65V ~ 3.6V
- Data Converters: A/D 16x12b; D/A 2x12b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 100-LQFP
- Supplier Device Package: 100-LQFP (14x14)
- Base Part Number: STM32F07
- detail: ARM® Cortex®-M0 STM32F0 Microcontroller IC 32-Bit 48MHz 128KB (128K x 8) FLASH 100-LQFP (14x14)
