دیتاشیت SN74HC595PWR

SN54/SN74HC595

مشخصات دیتاشیت

نام دیتاشیت SN54/SN74HC595
حجم فایل 2079.943 کیلوبایت
نوع فایل pdf
تعداد صفحات 39

دانلود دیتاشیت SN54/SN74HC595

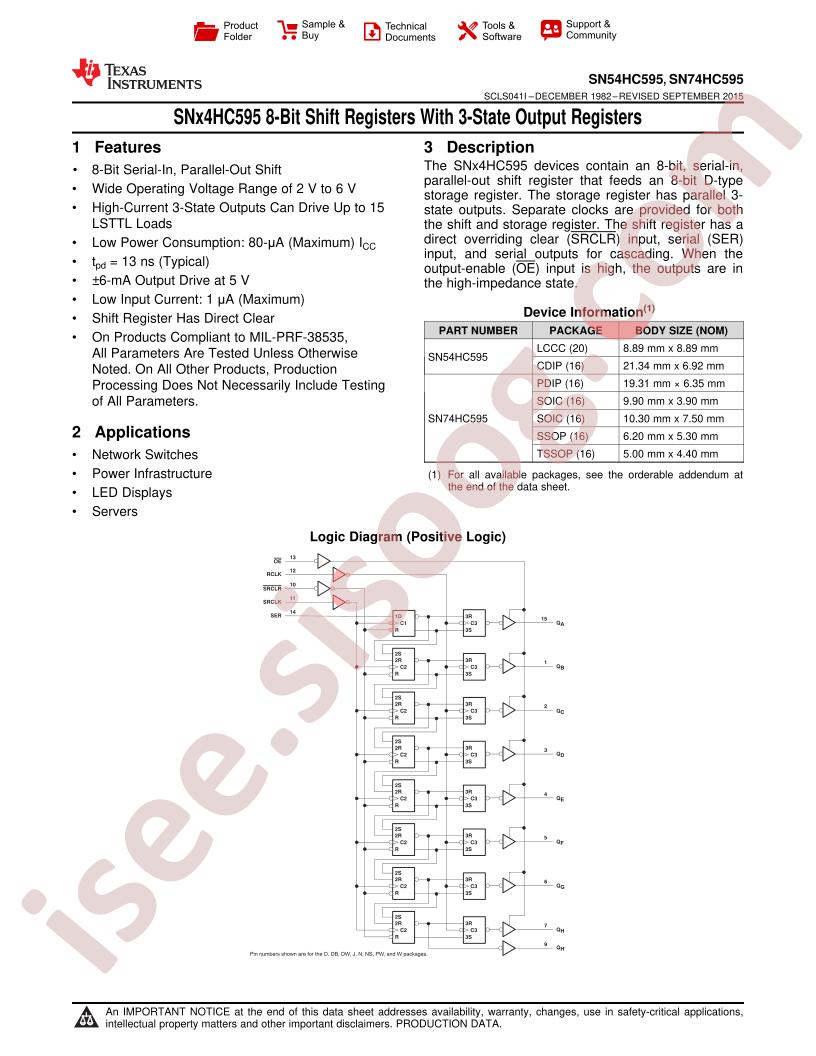

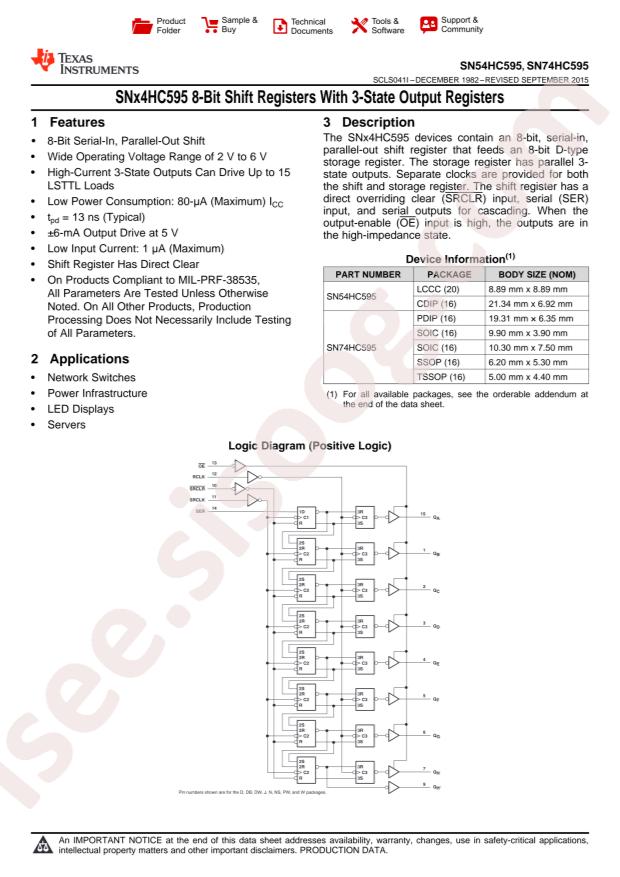

SN54/SN74HC595 Datasheet

مشخصات

  • RoHS: true
  • Series: 74HC
  • Category: Logic ICs/Shifting Register
  • Function: 串行至并行或串行
  • Datasheet: Texas Instruments SN74HC595PWR
  • Output Type: Tri-State
  • Supply Voltage: 2V~6V
  • Number of Elements: 1
  • Operating Temperature: -40°C~+85°C
  • Number of Bits per Element: 8
  • Package: TSSOP-16
  • Manufacturer: Texas Instruments
  • Packaging: Cut Tape (CT)
  • Base Part Number: SN74HC5
  • Package / Case: 16-TSSOP (0.173", 4.40mm Width)
  • Voltage - Supply: 2V ~ 6V
  • Supplier Device Package: 16-TSSOP
  • Logic Type: Shift Register
  • Mounting Type: Surface Mount
  • Part Status: Active
  • detail: Shift Shift Register 1 Element 8 Bit 16-TSSOP
